Revotron 1.2T
88

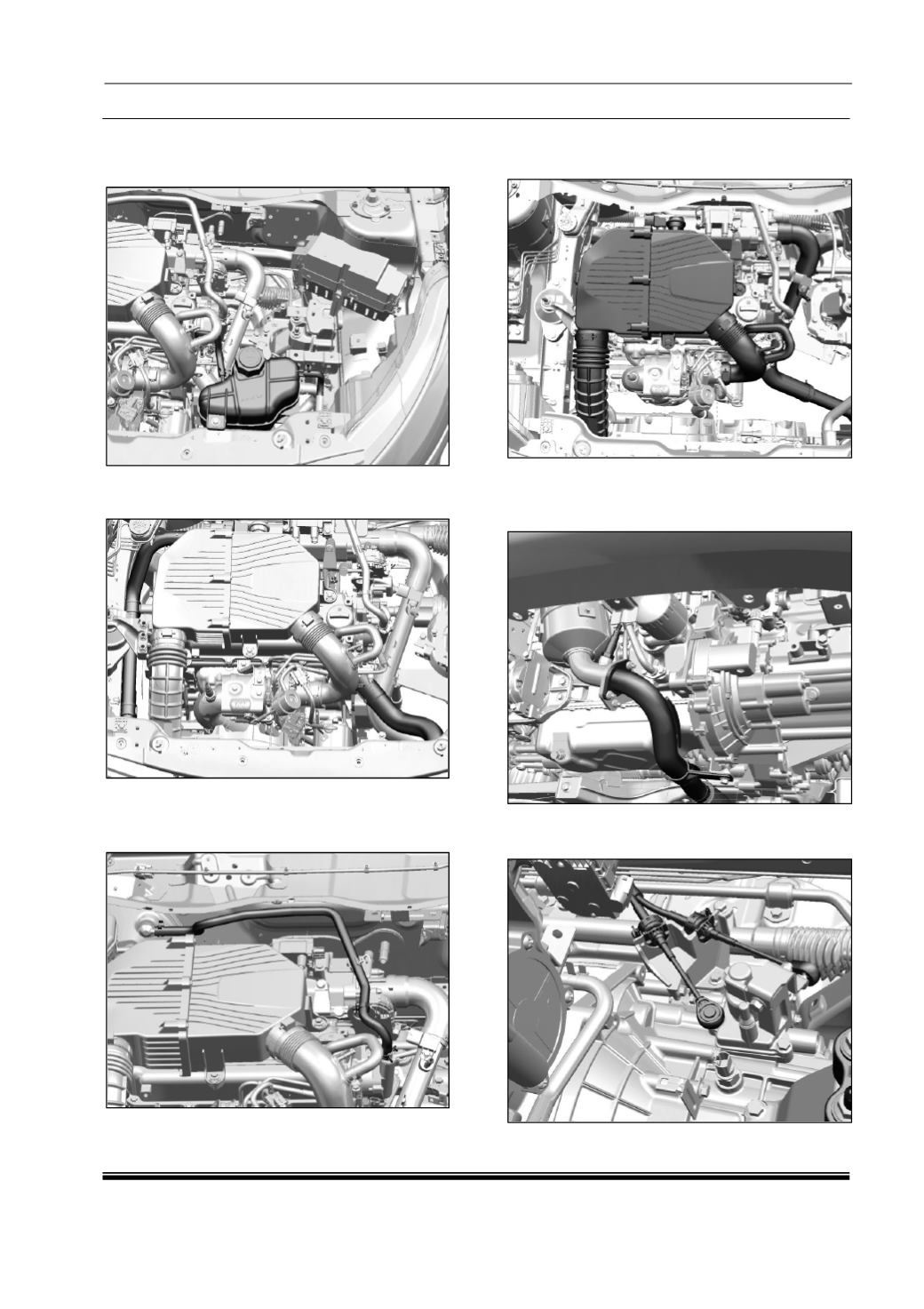

11. Disconnect and remove the auxiliary tank and
coolant hoses from the engine and heater
core.
12. Remove all the hoses connected between
radiator and engine.
13. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
14. Remove the air filter assembly and intake
system hoses from the engine.
15. To remove exhaust front pipe loosen the
flange near Catcon and disconnect at rear
end and pull it towards rear.
16. Disconnect the gear shift cable and selector
cable from the transaxle.
