ELECTRICAL
77

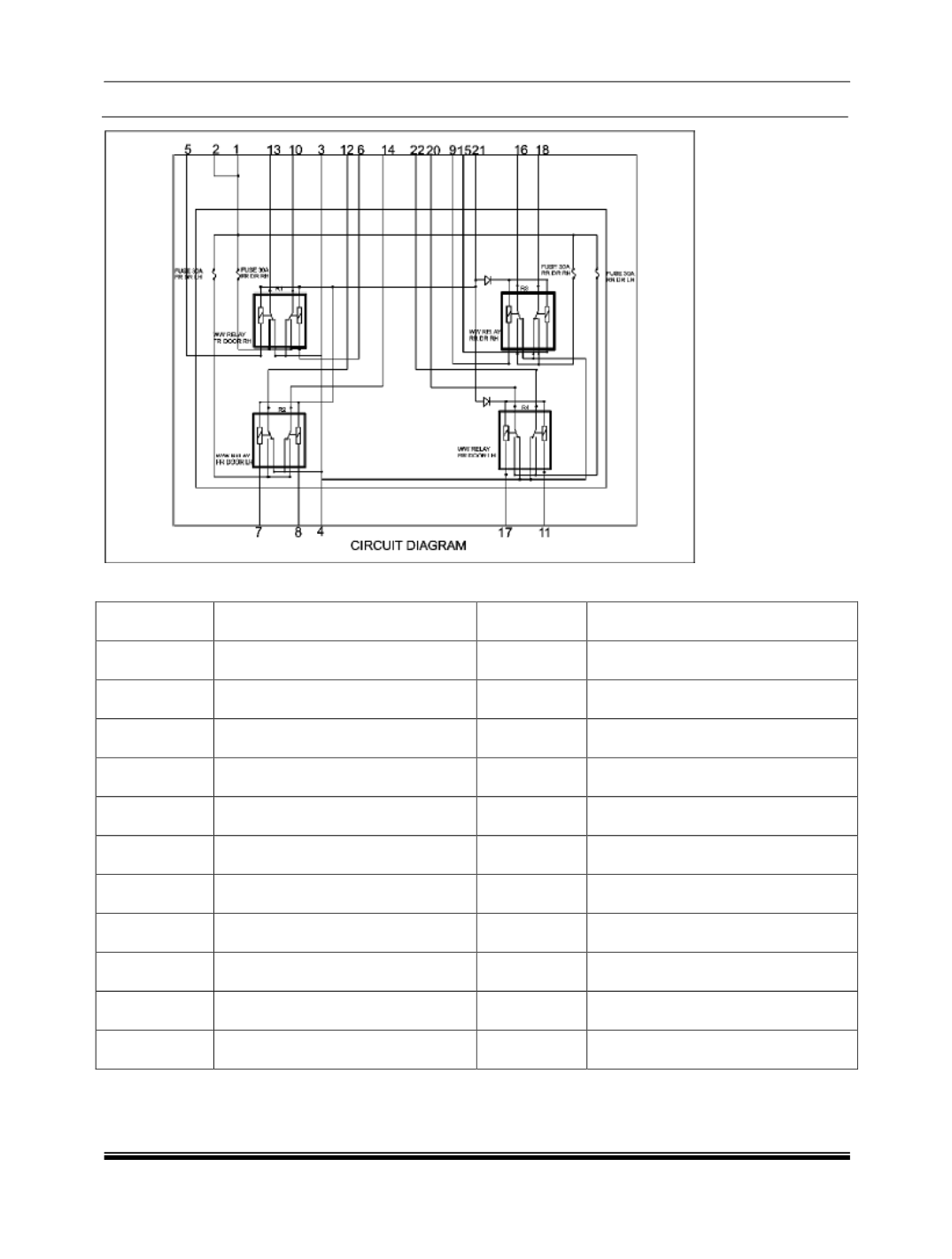

HEADER POINTS
SR. NO.
DESCRIPTION
SR. NO.
DESCRIPTION
1
+ ve supply
12
Co-Driver Door Motor PIN 1
2
+ ve supply
13
Driver Door Motor PIN 1
3
-ve supply GND
14
Co-Driver Door Motor PIN 2
4
-ve supply GND
15
RR Door RH DOWN COIL
5
Driver Door UP Coil
16
RR Door RH Motor PIN 1
6
Driver Door Down Coil
17
RR Door LH UP COIL
7
Co-Driver Door UP Coil
18
RR Door RH Motor PIN 2
8
Co-Driver Door Down Coil
19
Not Used
9
RR Door RH UP COIL
20
RR Door LH Motor PIN 1
10
Driver Door Motor PIN 2
21
Coil Supply
11
RR Door LH DOWN COIL
22
RR Door LH Motor PIN 2
