ELECTRICAL
64

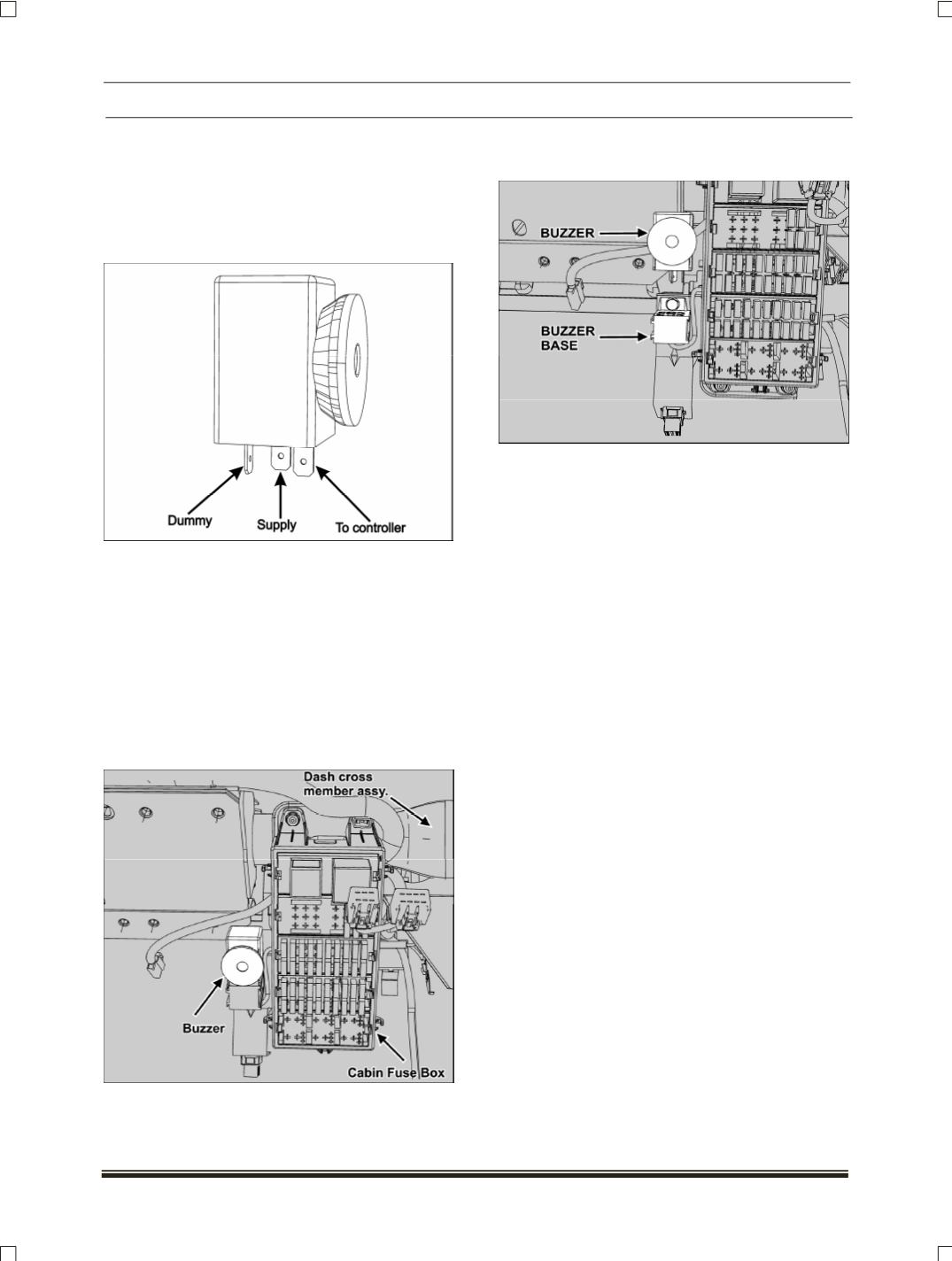

8.8. BUZZER:
FUNCTION:
Its function is to generate the warning
sound to alert the driver about any abnormal
condition of vehicle. It receives the input from the
BCM unit.
SPECIFICATIONS:
Operating Voltage
12 V dc
Operating Current
200mA
dB at 100 ±10 mm
100
Leakage Current
500 Micro Amps.
Vehicle Level Noise
70dB
LOCATION:
It is located on the Cabin fuse box mtg bracket.
REMOVAL:
1.Remove steering column cover. Assembly
2.Carefully pull out the buzzer from its base.
FITMENT:
1.Carefully fix the buzzer to its base.
2.Fit the steering column cover (Refer body
section).
