ELECTRICAL
56

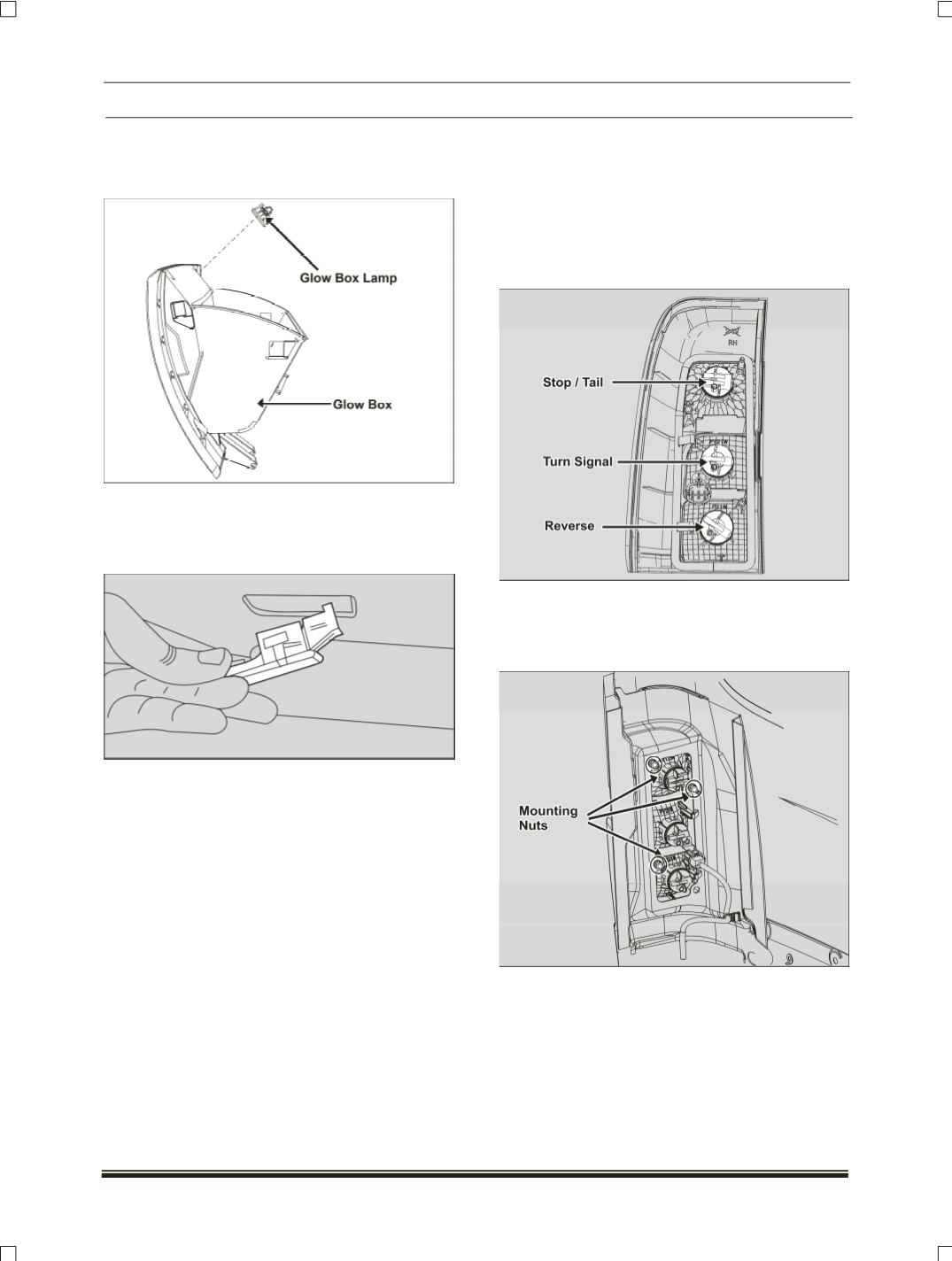

8.4.11 GLOVE BOX LAMP
It consists of bulb of ratting 12V, is fitted on
the top utility bin.
REMOVAL:
1.Open the top utility bin cover.
2.Pry out the lamp assembly from the cutout.
3.Disconnect the electrical connection.
4.Take out the lamp.
REFTIMENT:
1.Connect the electrical connection.
2.Fit the lamp assembly into the cutout provided
on the top utility bin. (Snap fitted).
BULB REPLACEMENT PROCEDURE:
1. Open the top utility bin cover.
2. Pry out the lamp assembly from the cutout.
3. Remove the bulb and replace with new one.
4. Fit the lamp assembly.
8.4.12 TAIL LAMP
Tail lamp consists of the following bulbs:
1. Turn indicator – 12V, 21W
2. Tail/stop light – 12V, 21/5W
3. Reverse - 12V, 21 W
It is fitted on D pillar panel.
REMOVAL:
1.Open the tailgate.
2.Remove three mounting bolts of Tail lamp.
3.Pull out the lamps from its location.
4.Disconnect the electrical connection.
5.Take out the lamp.
