ELECTRICAL
33
ELECTRICAL

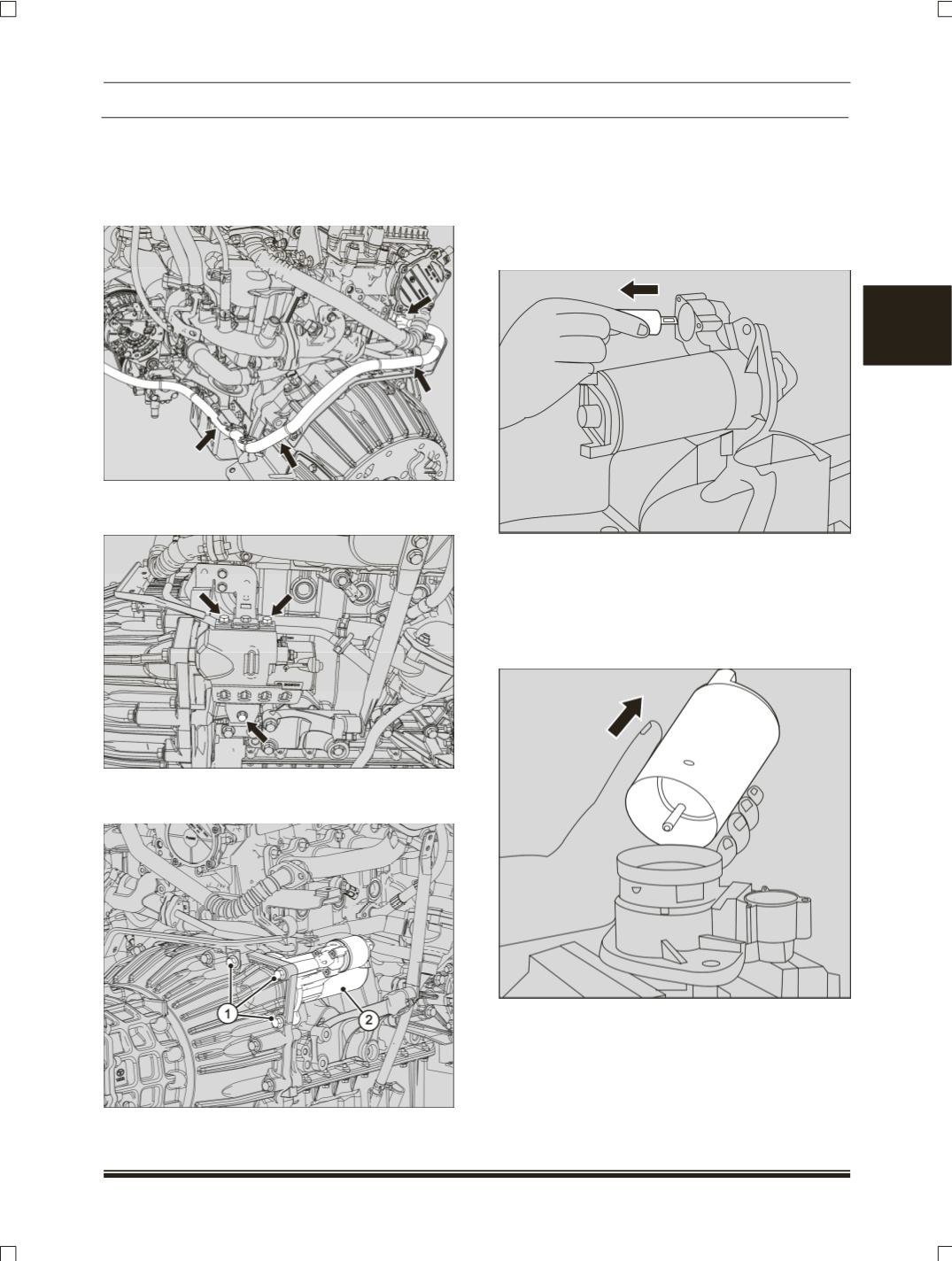

REMOVAL:
1.Remove negative terminal of battery.
2.Disconnect the battery cable connections of the
starter motor and routine.
3.Remove 3 mounting bolts of heat shield of
starter motor.
4.Loosen and remove the 3 mounting bolts (1) and
remove the starter motor (2).
DISMANTLING:
1.Clamp the starter motor by its 'eye' on a vice.
Unscrew nut on the solenoid and remove the
supply terminal. Loosen the three fastening
screws from the solenoid and remove the
solenoid. Remove the armature and return
spring.
2.Loosen screws on the rear closing cap but do
not remove yet.
3.Unscrew through bolts. Mount the starter motor
vertically on the vice. Remove stator frame with
closure cap, armature and commutator end
shield from the drive end housing.
4.Unscrew screws and remove closure cap from
commutator end shield. Remove retaining (lock)
washer and shims from armature shaft. Remove
commutator end shield.
5.Insert tool H-S/KDEP188 onto the armature shaft
