ELECTRICAL

18

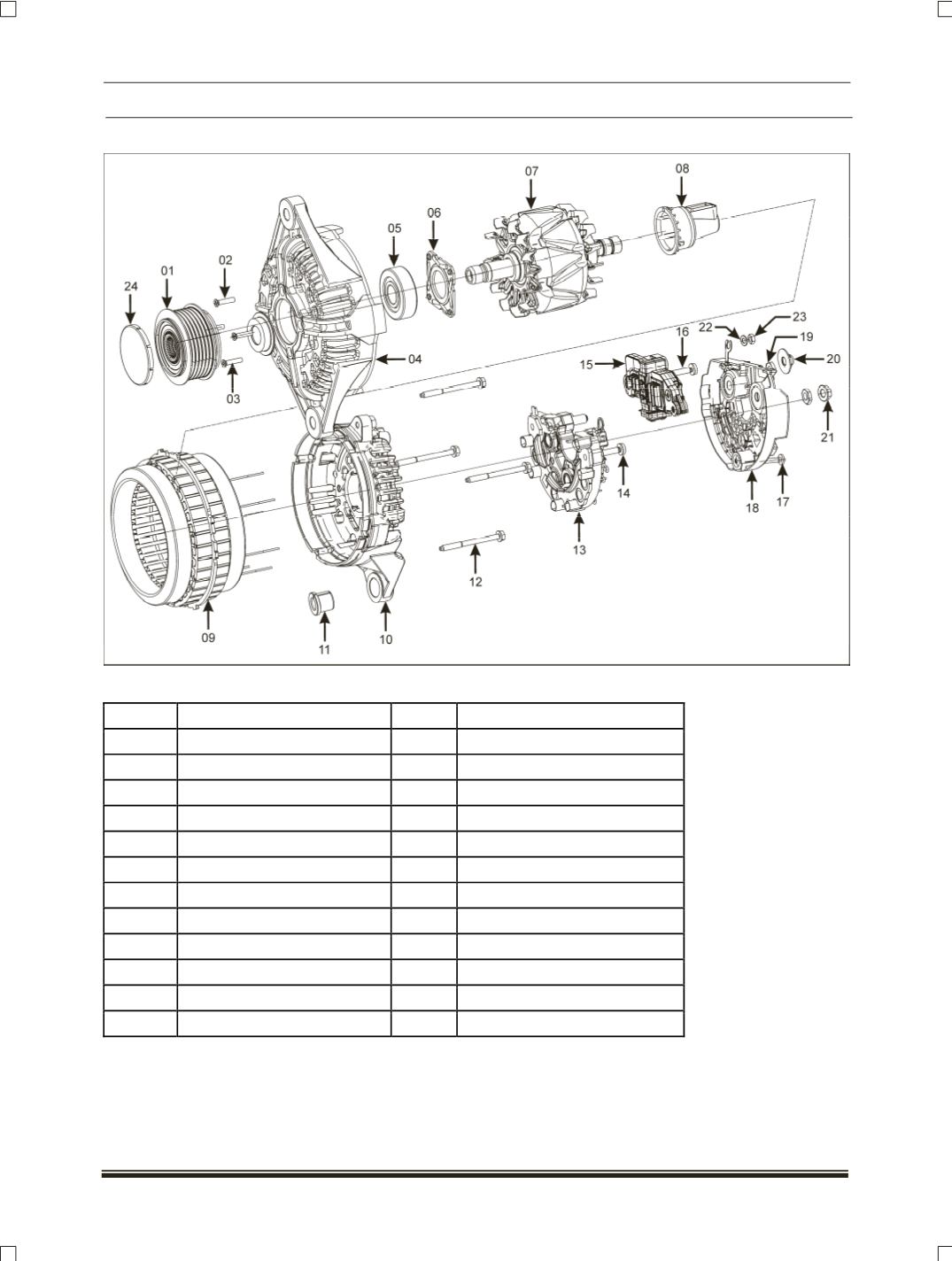

EXPLODED VIEW:

PART LIST:

DESCRIPTION

DESCRIPTION

1

Pulley

13

Rectifier

2

Counter Sunk-Head Screw

14

Washer And Screw Assembly

3

Spacer Ring

15

Transistor Regulator

4

Drive End Shield

16

Oval-Head Screw

5

Deep Groove Ball Bearing

17

Washer And Screw Assembly

6

Cover Plate

18

Protective Cap

7

Rotor

19

Hexagonal Nut

8

Fitting Ring

20

Protective Cap

9

Stator

21

Flanged Nut

10

Slip Ring End Shield

22

Spring Washer

11

Bush

23

Hex Nut

12

Hexagonal Screw

24

Protective Cap for OAP
