Rear Axle
11
Note:
Identification marks are punched on bearing cap;
this is to ensure correct bearing cap is installed on
correct side. Ensure correct bearing caps used
while reassembly.

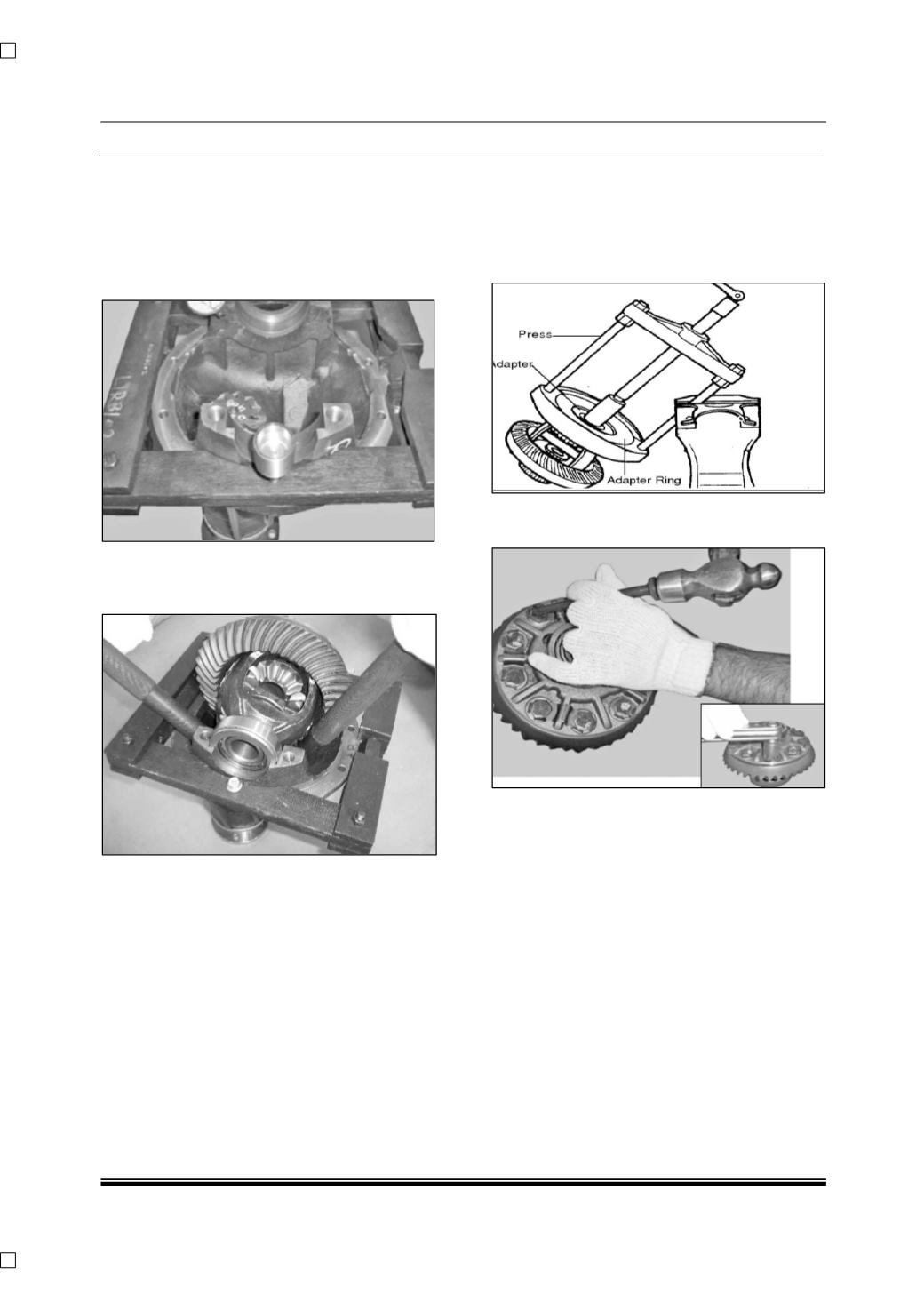

Remove Diffcase Assy.
Mount spreader on carrier & spread carrier by
rotating nut on spreader. Do not spread carrier
more than 0.58 mm.
Pry out differential case from carrier with help of
Tommy bars
Remove spreader.
3.2 RING GEAR REMOVAL
Remove Differential Case Bearings/Separate
Ring Gear:
Remove side bearing cone from Diffcase assy
using tool .1. Adapter, differential bearing cone
2. Identify shims and side bearings on both sides.
They are not to be interchanged during assembly.
If shims are damaged, replace with new shims
during assembly. Reposition case in puller and
remove side bearing cone on the other side in
same manner.
Note
:
It is always preferred to replace side bearings
once pulled out. But one can confirm free rolling of
bearings and reuse it, if they are defect free.
Separate Ring Gear:
Open lock strap strips with help of punch.
