FRONT AXLE (4X4)
17
FRONT AXLE
(4X4)

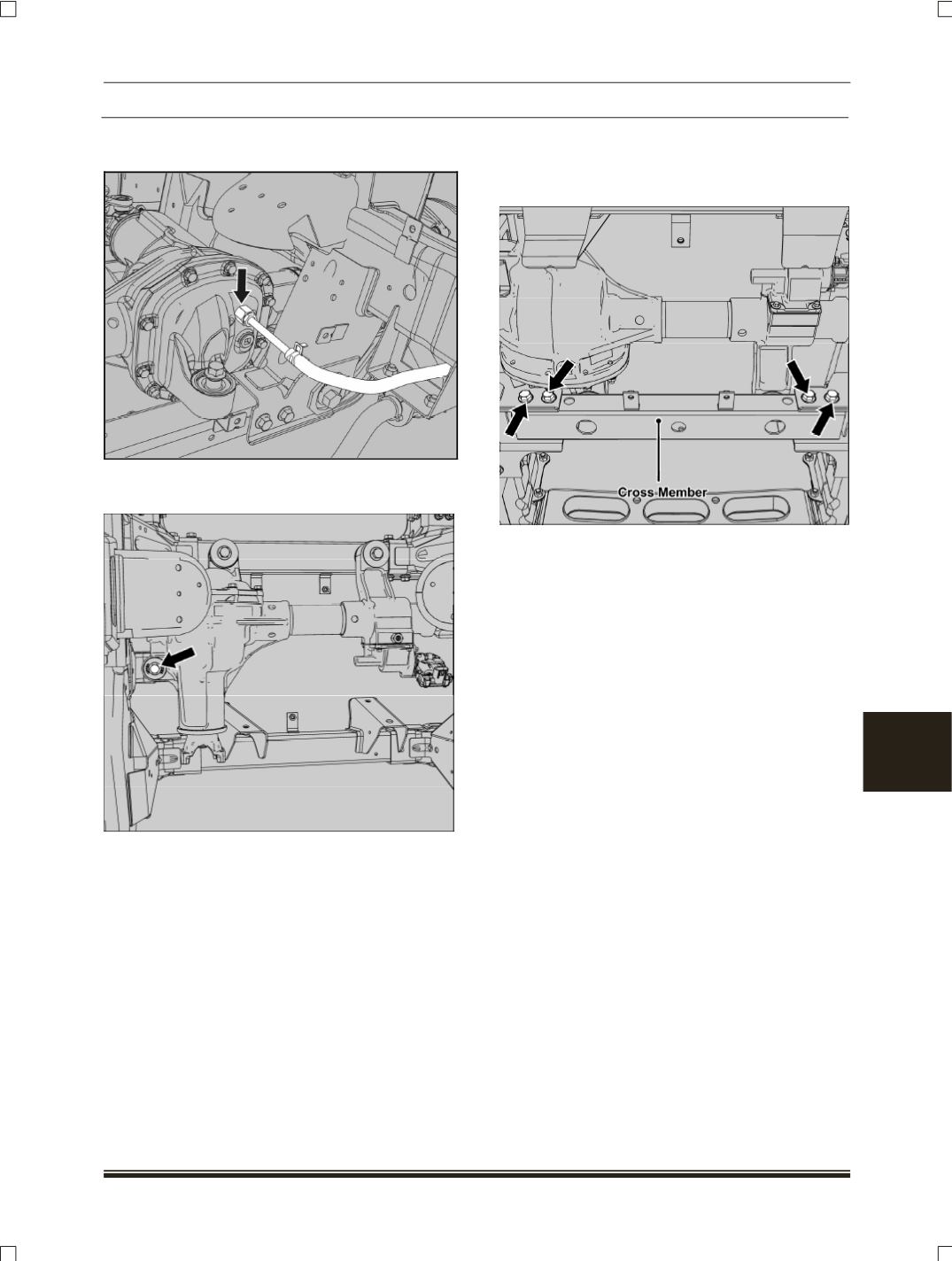

16.Loosen and remove the mounting nut of breather
assembly.
17.Loosen and remove the rear mounting bolt of
front axle assembly.
18.Support the cross member and loosen and re-
move the mounting
bolts (4 from rear and 4 from
front end)
and lower the front axle assembly with
cross member from the vehicle.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
Wheel alignment has to be done after removing or
dismantling any of the suspension or Steering com-
ponents.
