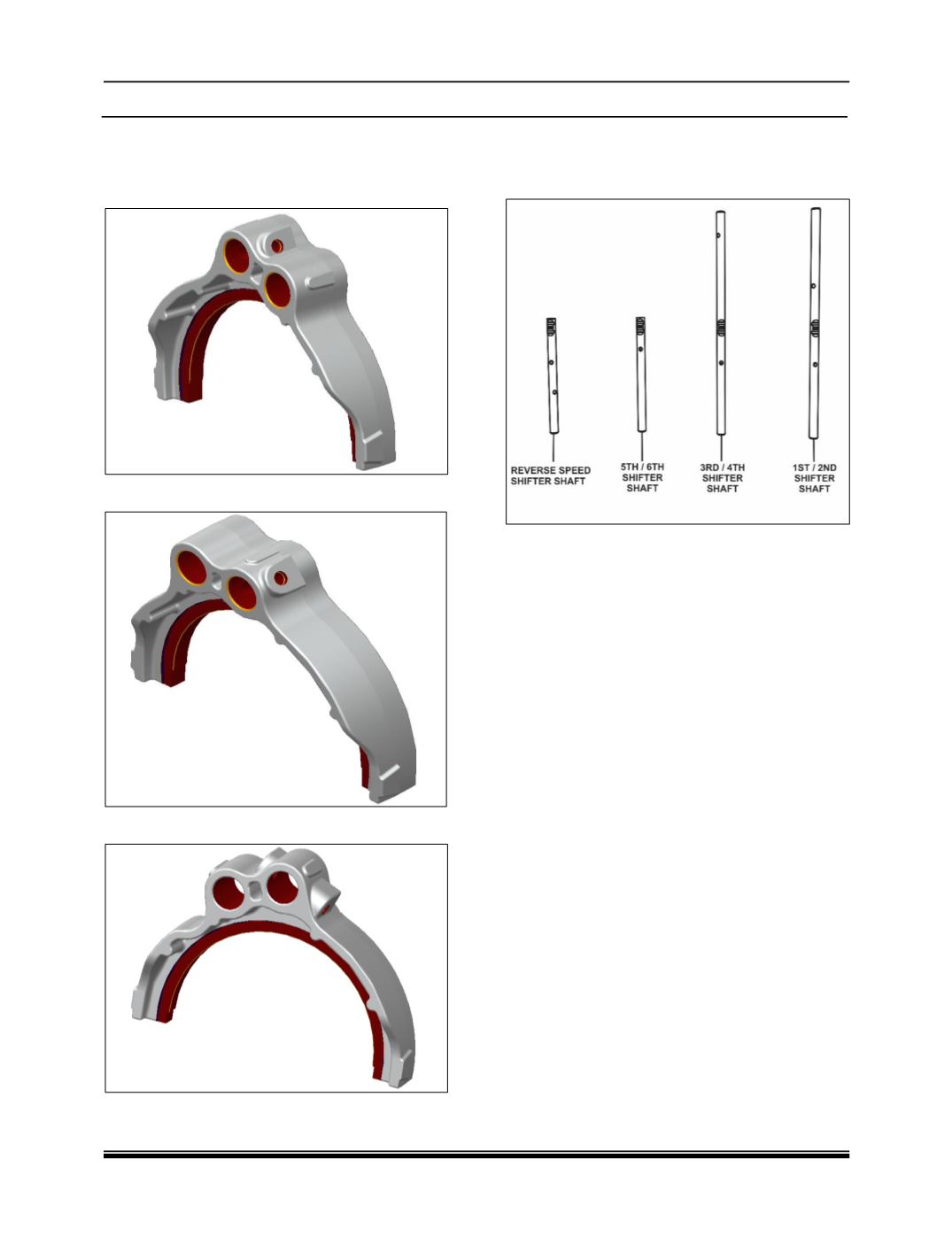

SHIFTER FORKS:
There are three types of shifter forks.
1. 1
st
/ 2
nd
shifter fork.
2. 3
rd
/ 4
th
shifter fork
3. Reverse Shifter fork
SHIFTER SHAFTS:
Shifter shafts can be identified by the distances
between two holes on the shafts.
B.
PRECAUTIONS:
Ensure oil is completely drained before
commencing the dismantling procedure.
Ensure engaging gears are properly
assembled on shafts with respective circlip.
Ensure oil seals are free from dust particles
and smear grease to dust lip.
Use special tools for removal and fitment of
gearbox bearings.
Ensure proper fitment of shifter sleeve
assembly with synchro cone on respective
shaft.
Ensure no damage should be done to reverse
light switch during handling.
Wherever thread lock gum is use for fasteners,
pre-coated fasteners can be use alternatively.
Do not reuse pre-coated fasteners.
