GEAR BOX
52

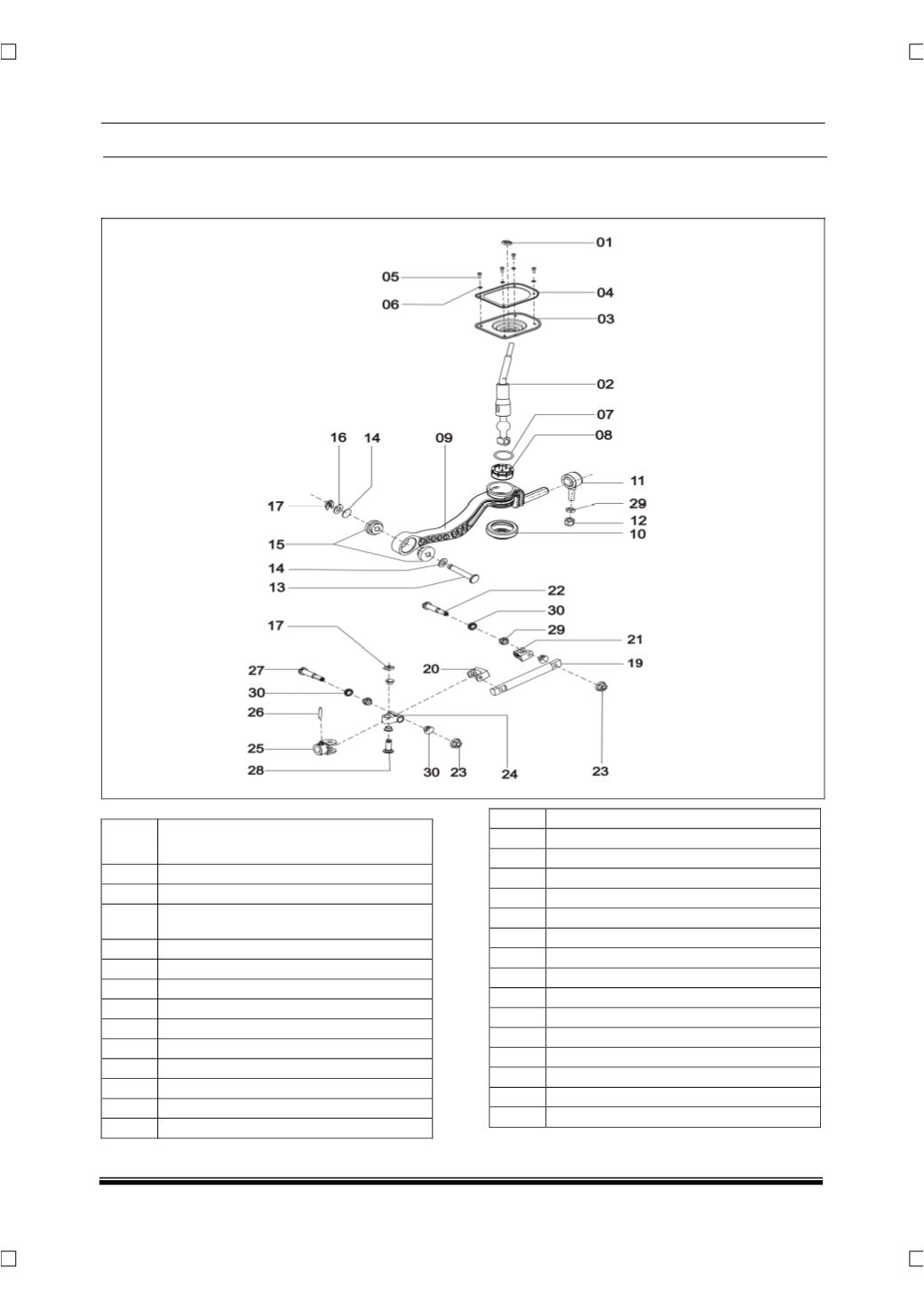

J. NON-ADJUSTABLE SHIFTER LINKAGE
CONSTRUCTIONAL DETAILS
SR.
NO
DESCRIPTION
01
Hex thin nut M10X1
02
Assembly gear shift lever
03
Rubber bellow
(Tunnel to extension
arm)
04
Clamping plate
05
Cr pan head screw M6X16
06
Spring washer B6
07
O-ring D28x2
08
Bush Gear Shift Lever Ball Seat
09
Extension arm
10
Rubber bellow
11
Assembly extension box support
12
Nyloc nut M12
13
Pin
(Extension arm bracket)
14
Washer
15
Collar bush
16
Curved spring washer
17
Retainer plate
19
Shift link rod
20
C clamp
(Yoke side)
21
C clamp
(GSL side)
22
Pin
(GSL side)
23
Hexagonal flange nut AM8
24
Shift link yoke
25
Shifting yoke
26
Spiral pin
27
Pin
(Yoke side)
28
Pin
29
Polymer (IGVS) Bush
30
Collar Bush
