GEAR BOX
32

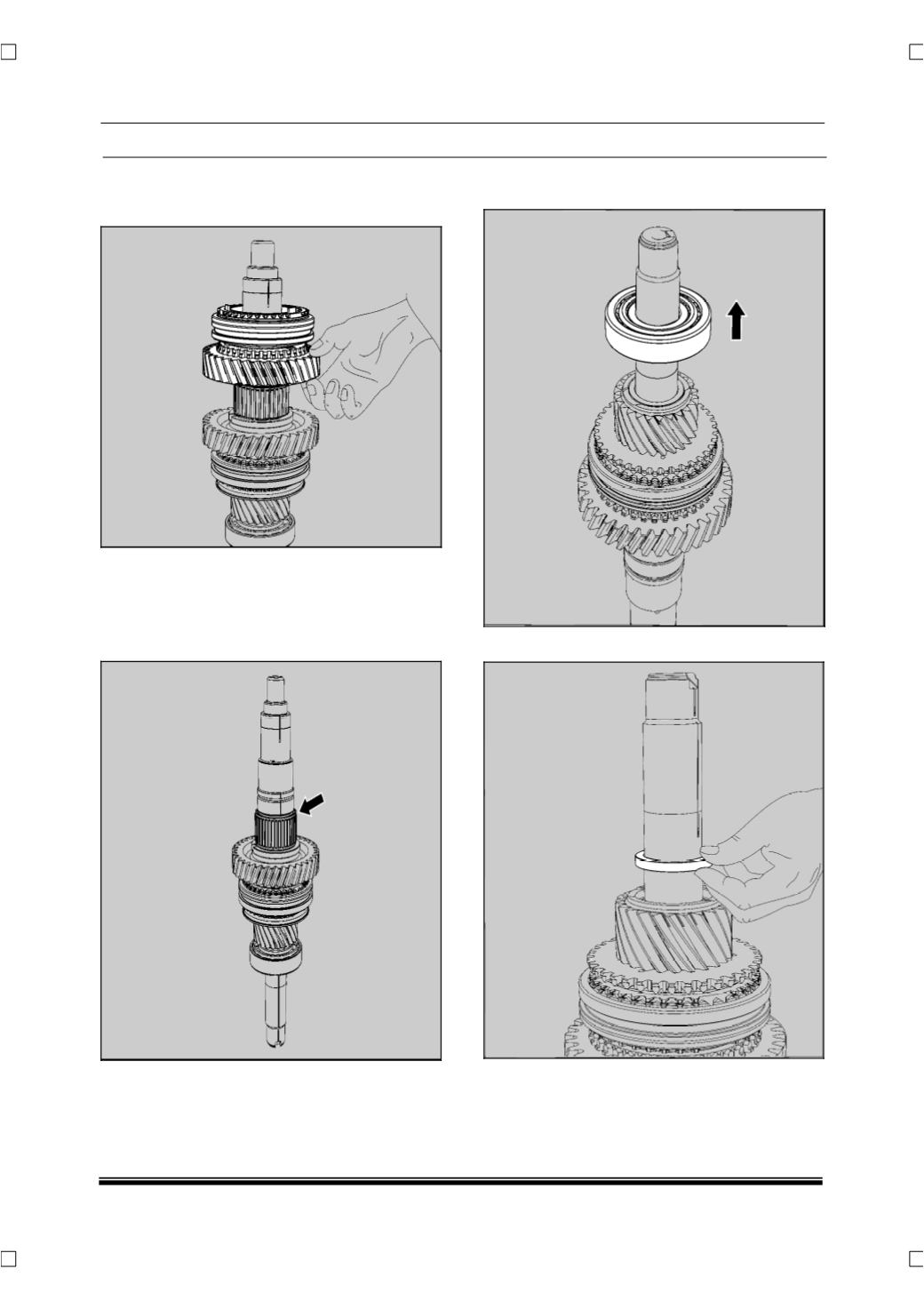

9. Remove the first speed gear along with 1
st
/2
nd
engaging gear assembly and synchrocone as-
sembly.
Separate the synchro cone assembly. Separate out
the shifter sleeve from engaging gear (1
st
/2
nd
speed)
and remove the strut assemblies.
10.Remove the needle cage bearing and rotate the
main shaft assembly upside down.
11.Pull out the taper roller bearing inner race with
the help of puller. (Part No. 2654 5890 26 12.)
12.Remove the spacer.
