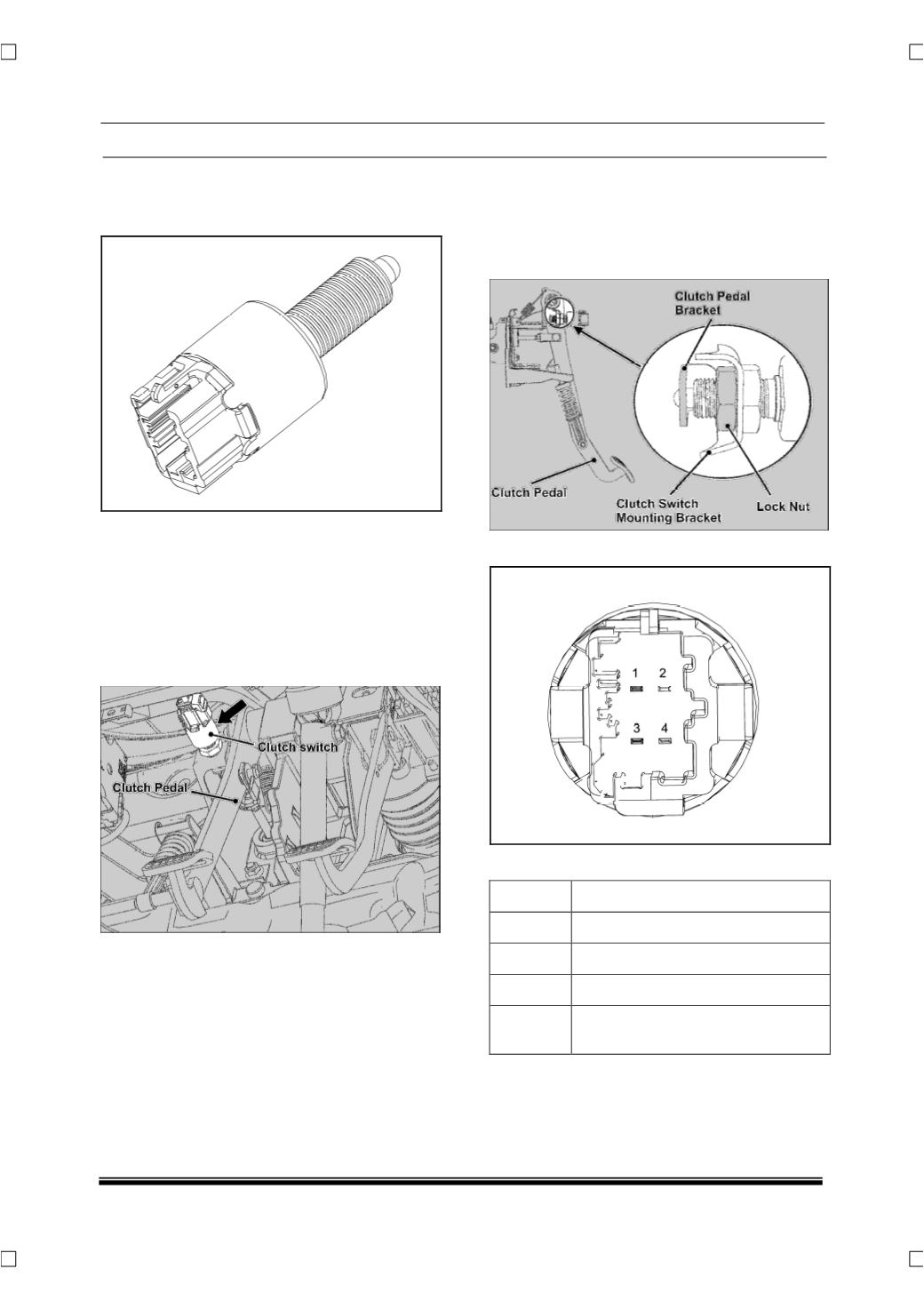

13. CLUTCH SWITCH:
It provides information to ECU before the gear
change which helps in faster gear change detection.
Based on this input the ECU maintains optimum fuel
supply. In case of cruise control functionality, vehi-
cle will come out of cruise if clutch pedal is
depressed.
LOCATION
It is fitted on clutch switch mounting bracket.
REMOVAL
1. Disconnect the electrical connection from the
clutch switch.
2. Loose and remove lock nut of clutch switch and
take out the clutch switch.
PIN OUT
BRAKE LIGHT SWITCH
PIN NO DESCRIPTION
1
Ground
2
Ground
3
Clutch pedal signal to EMS
4
Clutch pedal signal to EMS
(Cruise
Control)
