HVAC

4

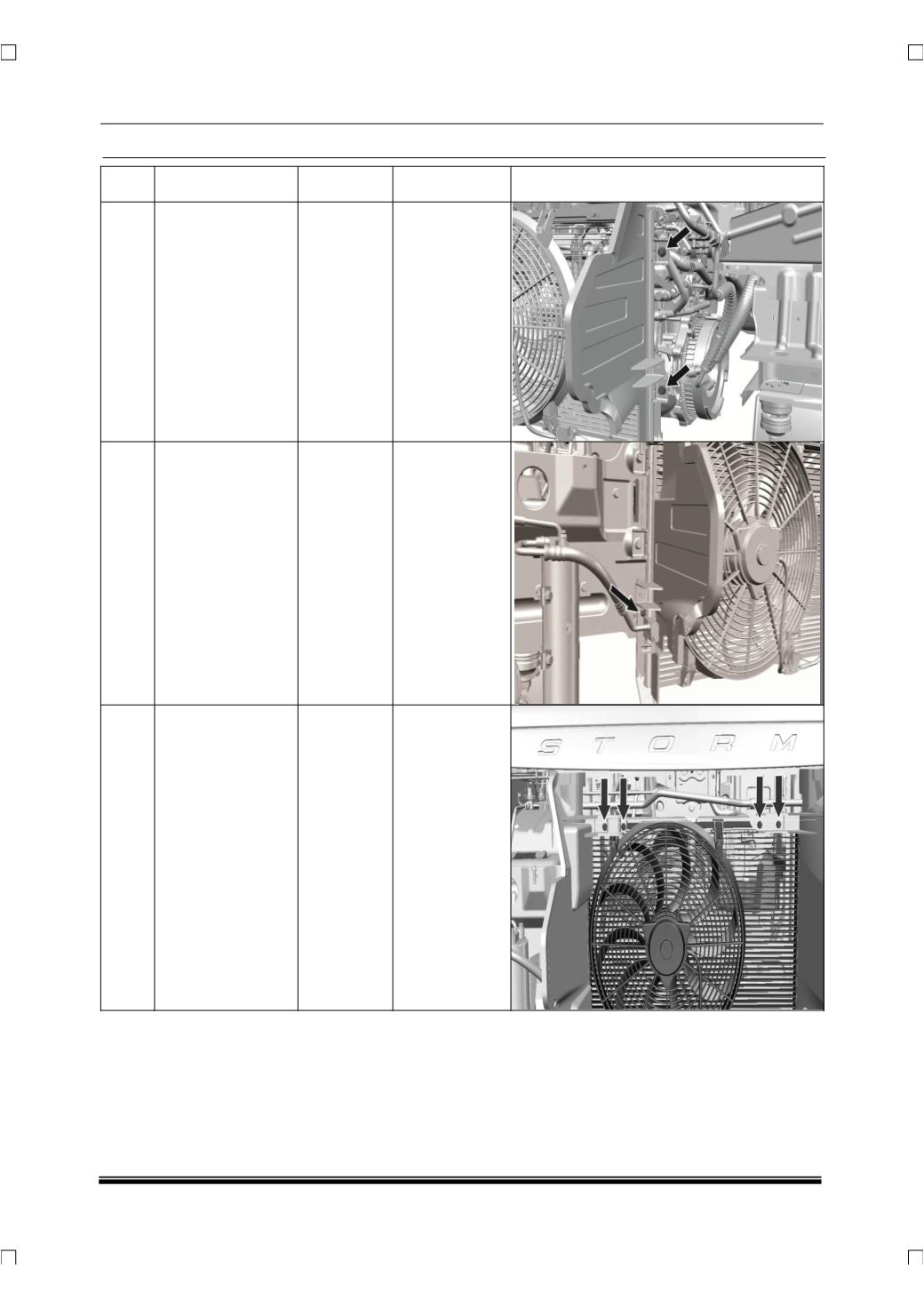

SR NO. DESCRIPTION

FASTENER

TIGHTENING

TORQUE (N-m)

LOCATION

3B Condenser mounting

M8 X 18

M8 X 30

12 ~ 14

12 ~ 14

4A

Condenser seal

assembly

M5X16

6 ~ 8

4B

Condenser assembly

bolts

M6X30

6 ~ 8
