BODY
33
BODY

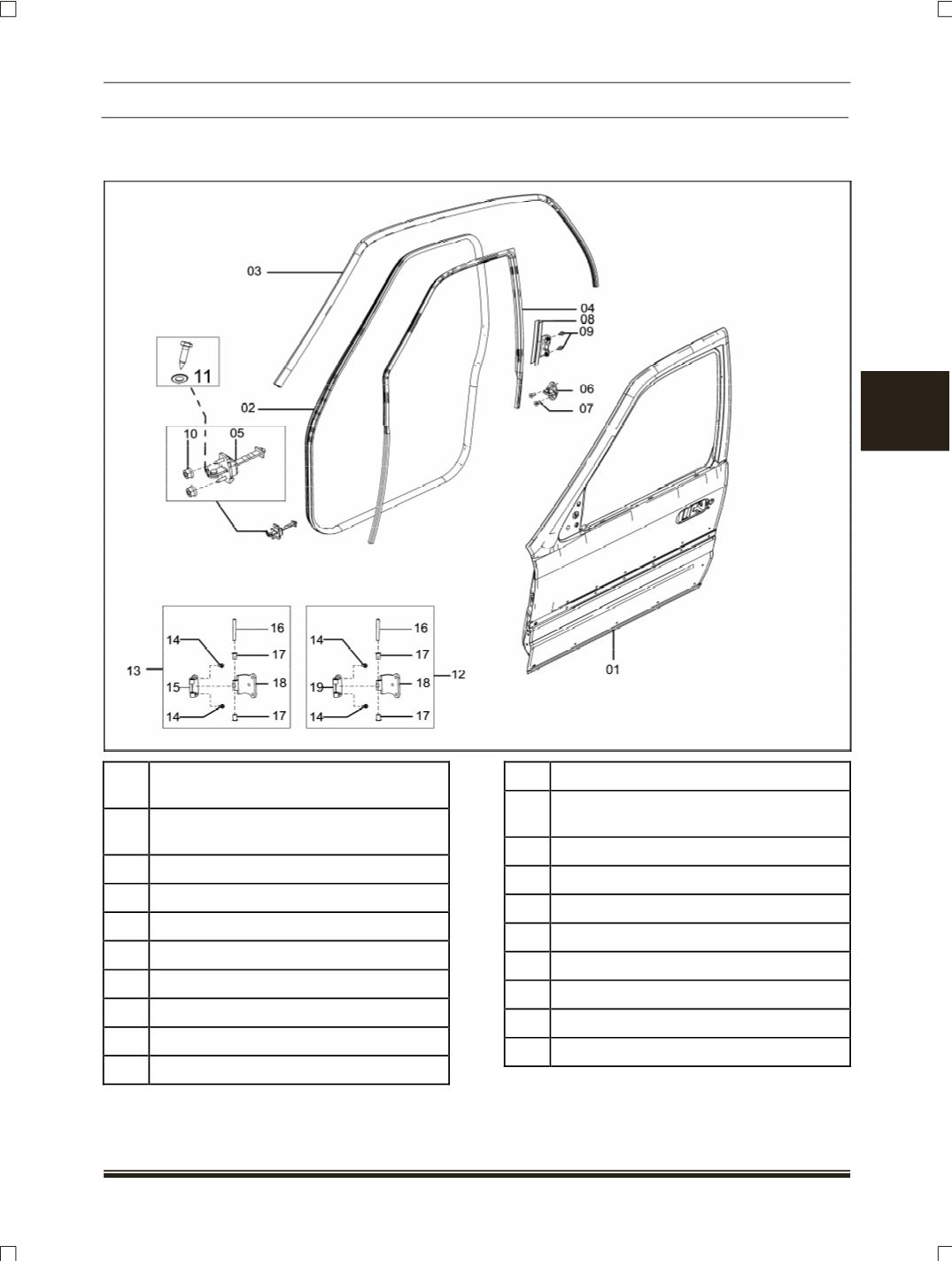

9.2.11 FRONT DOOR
CONSTRUCTIONAL DETAILS
SR.
NO DESCRIPTION
01 Assembly body less doors domestic with
aerial
02 Front door primary mould
03 Upper auxiliary mould
04 Glass run front mould
05 Assembly check strap
06 Assembly striker
07 Screw M8X20
08 Assembly rear channel front door
09 Hexagonal flange screw M6X12
10 Hexagonal flange nut AM6
11 Hexagonal screw M8X32 with spring
washer.
12 Cross pan headed screw M6X14
13 Assembly. hinge upper
14 Torx screw M8 X 28tvs
15 Hinge leaf (door side)
16 Pin (hinge)
17 Collar bush
18 Hinge leaf (body side)
19 Hinge leaf (door side)
