ELECTRICAL
235
ELECTRICAL
8.17. GENERAL ELECTRICAL INFORMATION
8.17.1 FUSE AND RELAY BOX DETAILS
The fuses and relays are located in three fuse
boxes,
1.Battery mounted fuse box or BDU (Battery
distribution unit) mounted on battery in engine
compartment
2.Engine compartment fuse and relay box or
MDU (Main distribution unit) in the engine
compartment.
3.Cabin fuse and relay box under the dashboard
on driver side RH. It is part of main wiring
harness.

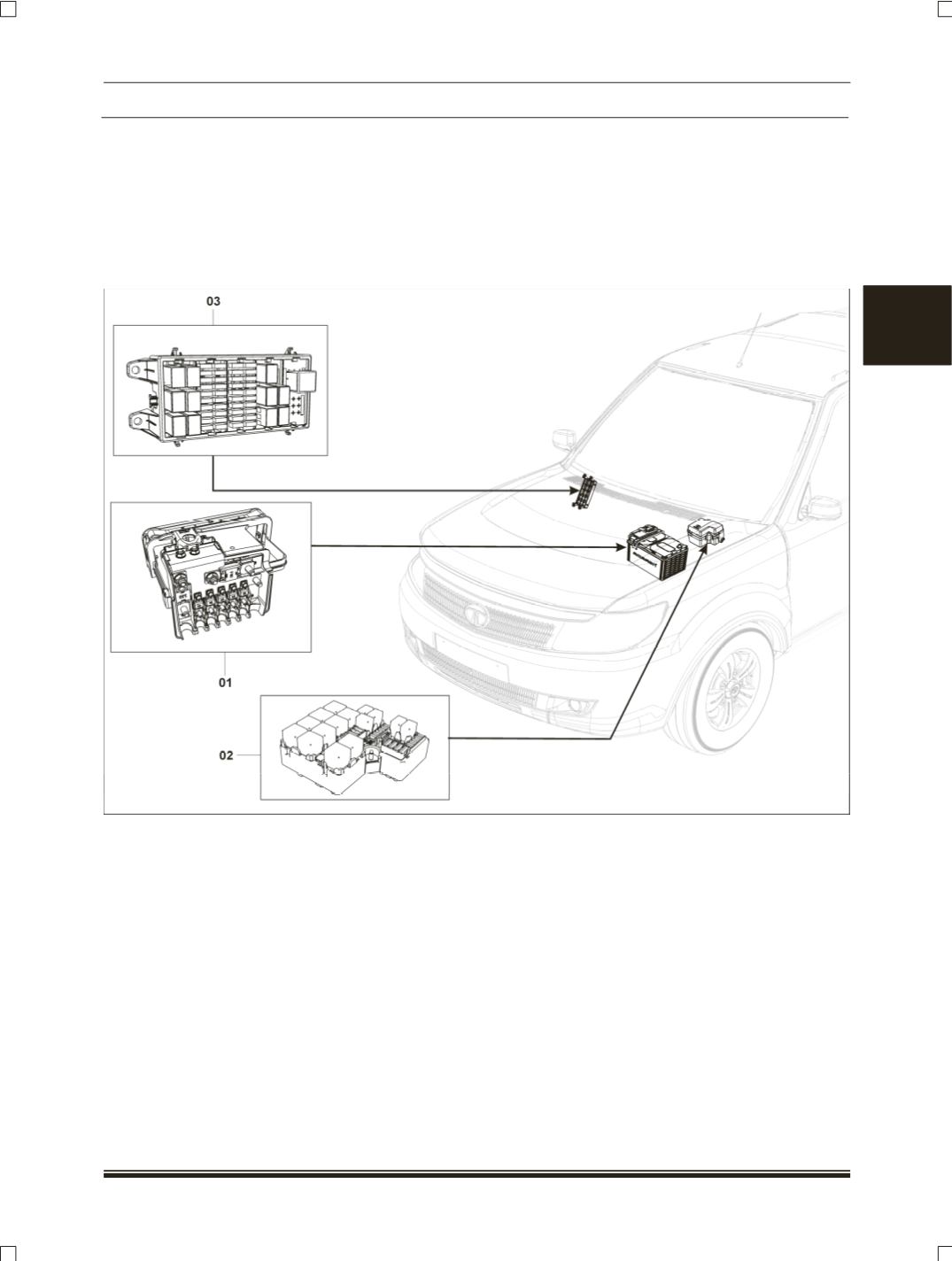

01- Battery mounted fuse box (BDU).
02- Engine compartment fuse and relay box (MDU)
03- Cabin fuses and relay Box.
