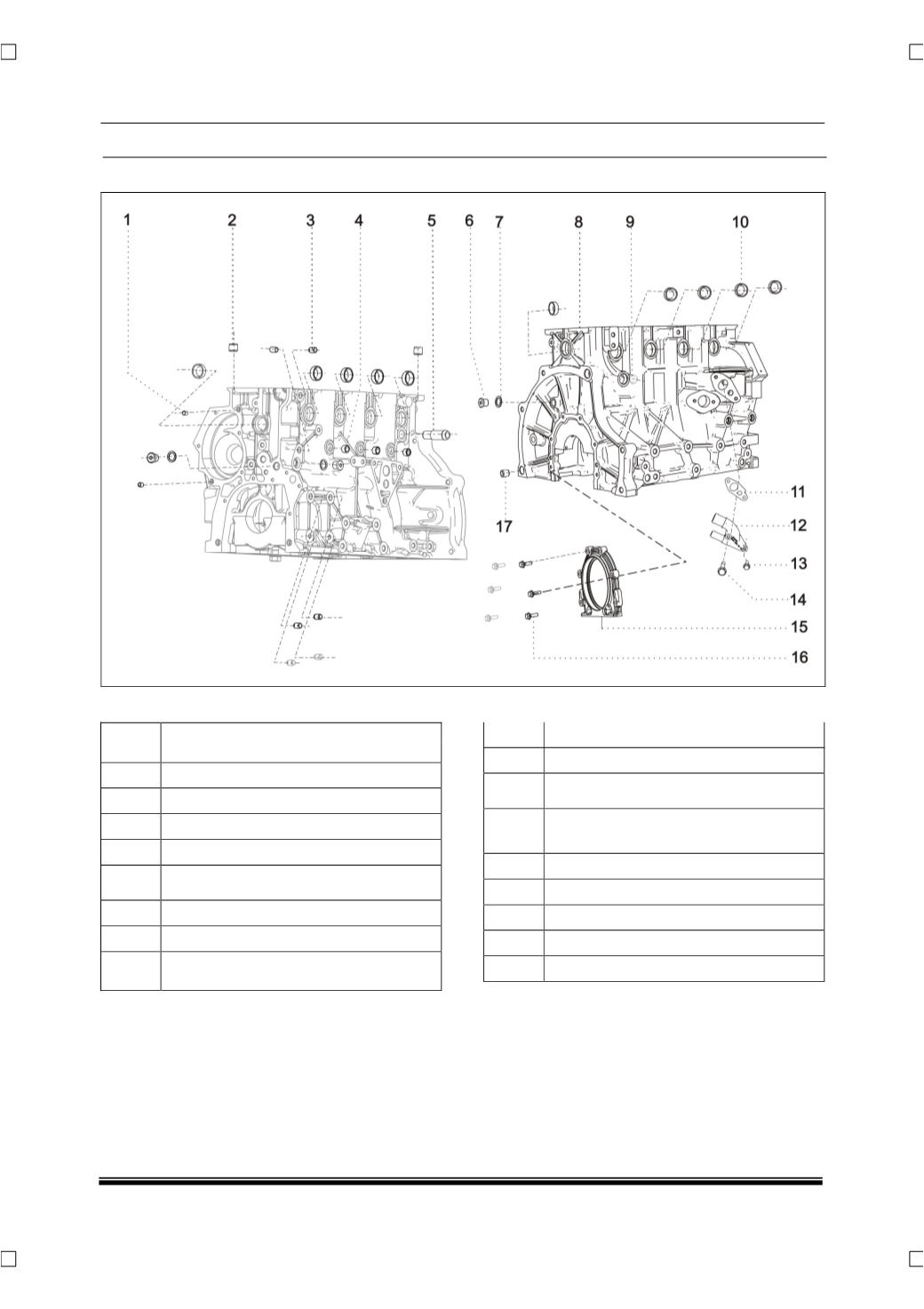

B. ENGINE EXPLODED VIEWS
SR.
NO.
DESCRIPTION
01
HOLLOW DOWEL 8h6x6.5x8L
02
HOLLOW DOWEL - CYLINDER HEAD
03
HOLLOW DOWEL - SUPPORT FIP
04
SEALING CAP B14
05
TUBE-FROM CRANKCASE TO OIL
COOLER
06
SEALING PLUG M14X1.5
07
SEALING WASHER 14X20
08
ASSY. CYLINDER CRANKCASE WITH
M.B. CAP
09
SEALING CAP B20
10
CORE PLUG [ 27 DIA.]
11
GASKET-COOLANT ADAPTOR TO
BLOCK
12
ASSY. COOLANT ADAPTOR (ON CYL.
BLOCK)
13
HEX FL SCREW M6X22
14
HEX FL BOLT M6X60
15
OIL SEAL-CRANKSHAFT REAR
16
HEX FL SCR M6X12
17
HOLLOW DOWEL - CLUTCH HOUSING
