ENGINE 273 MPFI
89
ENGINE

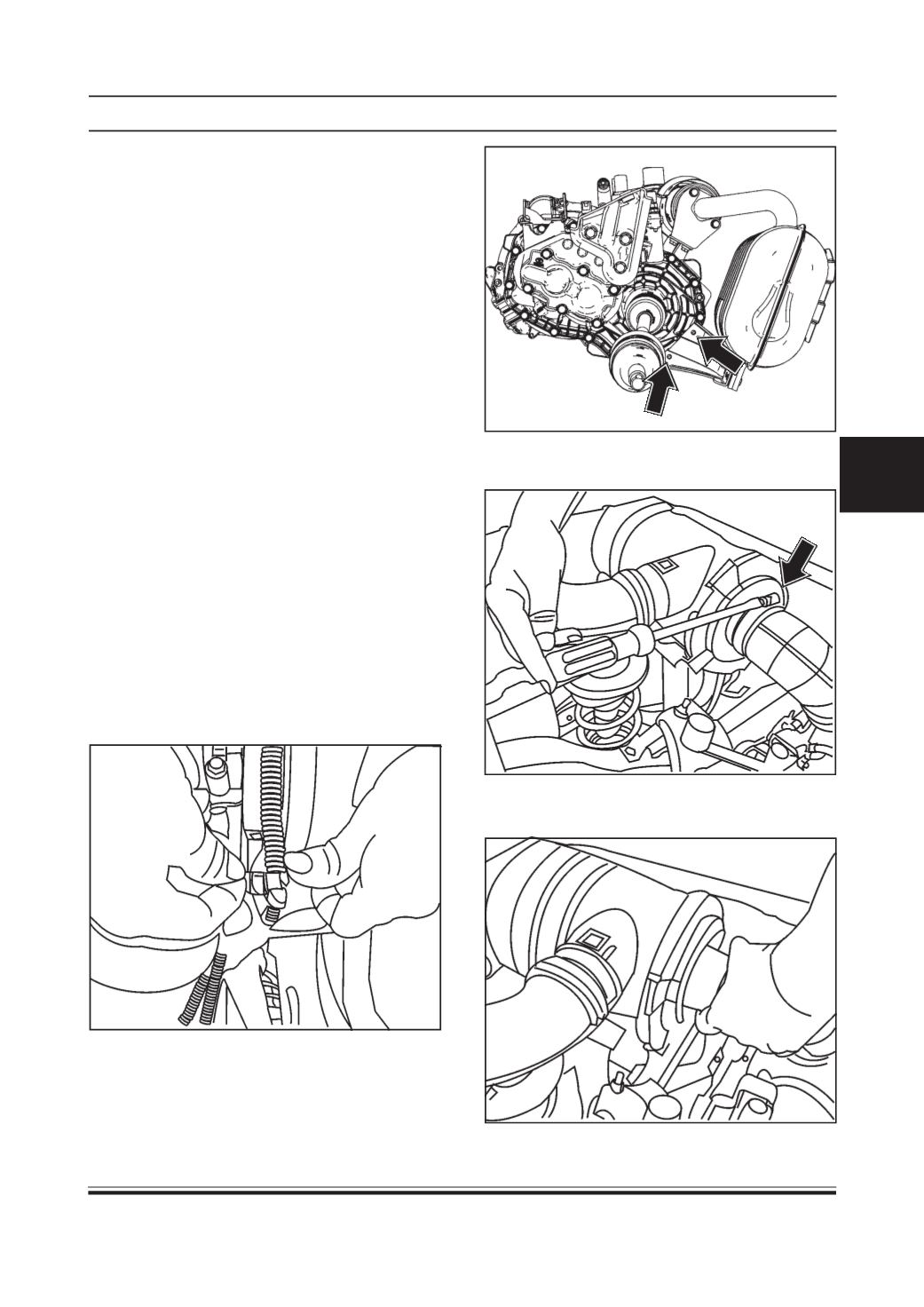

REMOVALOF ENGINE FROMVEHICLE
•
Remove negative terminal of battery
•
Remove tailgate, rear bumper & engine rear shelf.
(Refer Body group)
•
Park the car on a two post lift.
•
Remove rear tyres.
•
Release fuel pressure. (Refer Fuel System, Engine
group)
•
Drain out brake fluid (Refer Brake System).
•
Disconnect brake pipelines from rear wheel cylinder
/ T-connector.
•
Drain engine oil and coolant.
•
Recover refrigerant from HVAC/AC system and
remove HVAC connectors and heater line
connectors (Refer HVAC System).
•
Disconnect gear shift cables.
•
Disconnect fuel rail hose.
•
Declamp vapour line between canister purge valve
& intake manifold.
•
Remove all electrical connectors of engine harness
spread on cylinder head cover.
•
Disconnect engine wiring harness frommain wiring
harness/ECU.
•
Disconnect ECU earthing cable, ECU connector
and main connector.
•
Declamp engine harness routed on timing cover.
•
Declamp engine harness routed on radiator duct.
Remove radiator assembly with cover.
•
Remove silencer along with bracket mounted on
transaxle.
•
Remove the hose clamp securing air filter housing
and flexible hose (air filter to throttle body).
•
Disconnect flexible hose (air filter to throttle body)
at air filter housing end.
