ENGINE 273 MPFI
No. Description
Max. Torque in kgf-m
37 THROTTLE BODY SUPPORT BRACKETTO CLY. HEADM6 X 22L
1.1+0.2
38 ALTERNATOR TOALTERNATOR BRACKET,BOLTM8 X 55
2.2+0.2
39 ALTERNATOR BRACKETTOCYLINDER BLOCKM8 X 30
2.2+0.2
40 STAYALTERNATOR TO ‘A’ MOUNTINGARM, BOLTM8 X 25
2.2+0.2
41 IGNITION COIL, CAP SCREWM4 X 20L
0.4+0.1
42 SPARK PLUG
2.5+0.5
43 SPEED SENSOR TO FRONT COVER ,SCREWM6 X 16L
0.8+0.2
44 STARTERMOTOR, BOLTM8 X 60L
2.2+0.2
45 MAP SENSOR TO INTAKE MANIFOLD, M6 (FOR PLASTIC)
0.8+0.2
46 THERMOSTATCOVER, SCREWM6 X 18L
1.1+0.2
47 AIR FILTERMOUNTING , SCREWM6 X 12L
1.0+0.2
48 A’ MOUNT TO BLOCK, SCREWM8 X 28L
2.2+0.2 (IN 2 STAGES 1-2.2)
49 ‘C’ MOUNT TO BLOCK ,SCREWM10 X 25L
3.5+0.5 (IN 2 STAGES 1-3.5)
50 A&B MOUNTING PAD TO CRADLE, COLLAR SCREW
4.0+0.5 (IN 2 STAGES 1-3.5)
51 ‘A’ MOUNT TO PAD BOLT
4.0+0.5 (IN 2 STAGES 1-3.5)
52 ‘A’ MOUNT TO BLOCK NUT M8
2.2+0.2
53 “B’ MOUNT TO PAD BOLT M10
4.0+0.5 (IN 2 STAGES 1-3.5)
54 ‘C’ MOUNT ON SMALL BUSH TO ‘C’ MTG. BKT. BOLT
4.0+0.5 (IN 2 STAGES 1-3.5)
55 ‘C’ MOUNT ON BIG BUSH TO ‘C’ MTG. BKT. BOLT
4.0+0.5 (IN 2 STAGES 1-3.5)
55 A/CMOUNTING BRACKET TOCYLINDER BLOCKM8 X 30
2.2+0.2
56 A/C COMPRESSOR TOAC MOUNTING BRACKET M8 X 90
2.2+0.2
57 A/C COMPRESSOR TOAC MOUNTING BRACKET M6 X 45
2.2+0.2

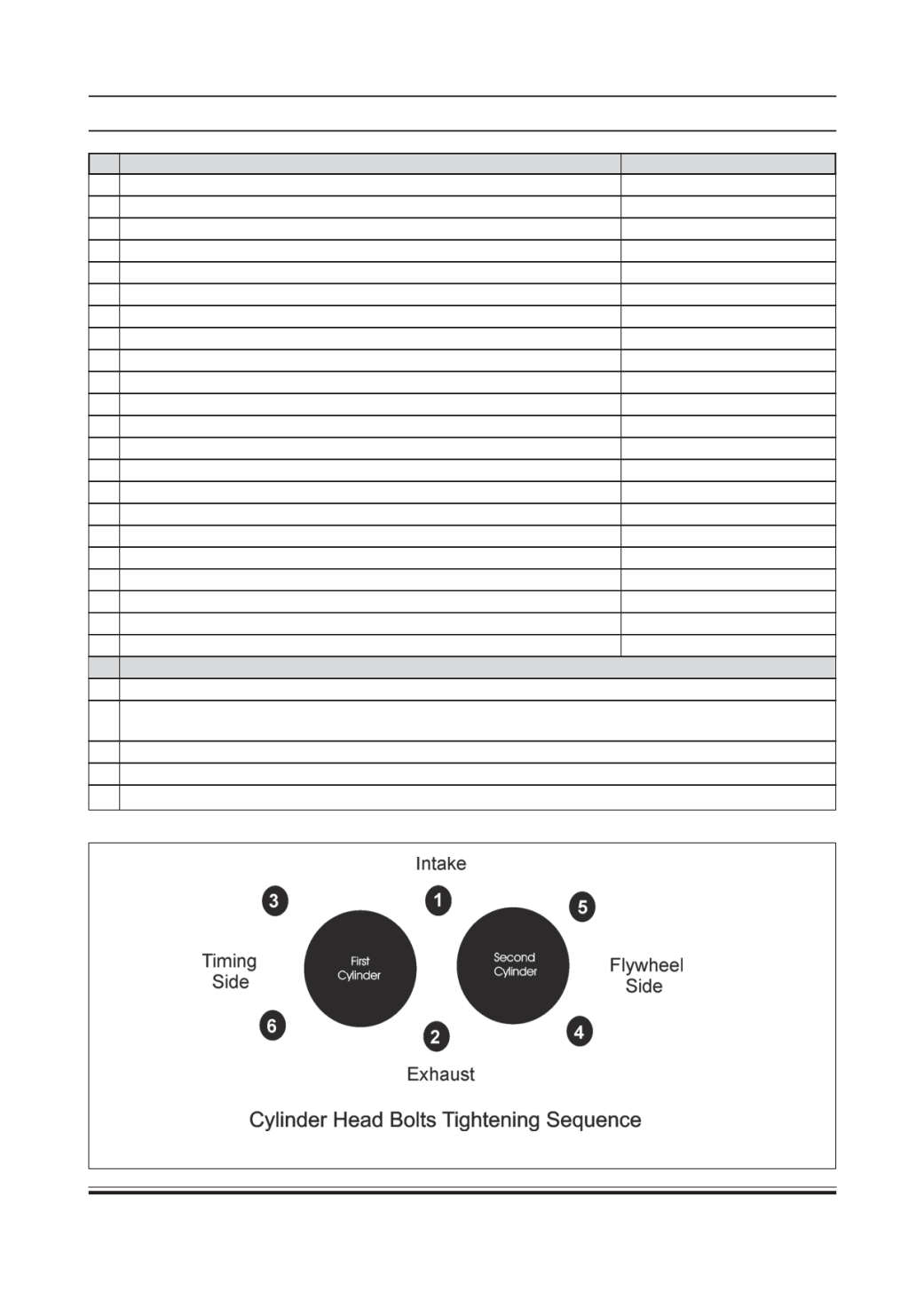

58 STEPSTOTIGHTEN CYLINDER HEAD BOLT (APPLICABLE FOR HANDTIGHTENING)
1 USE ALL FRESH BOLTS & WASHERS ALONG WITH A FRESH GASKET
2 CHECK THE BOLT COLLAR SEATING SURFACE ON THE CYLINDER HEAD. IT SHOULD BE CLEAN
AND NOT DEFORMED.
3 TORQUE 1 KG-M TOALL BOLTS AS PER SEQUENCE
4 TORQUE 3 KG-M TOALL BOLTS AS PER SEQUENCE
5 TORQUE 7 KG-M TOALL BOLTS AS PER SEQUENCE
