NANO AMT

SUSPENSION SYSTEM

435

SUSPENSION

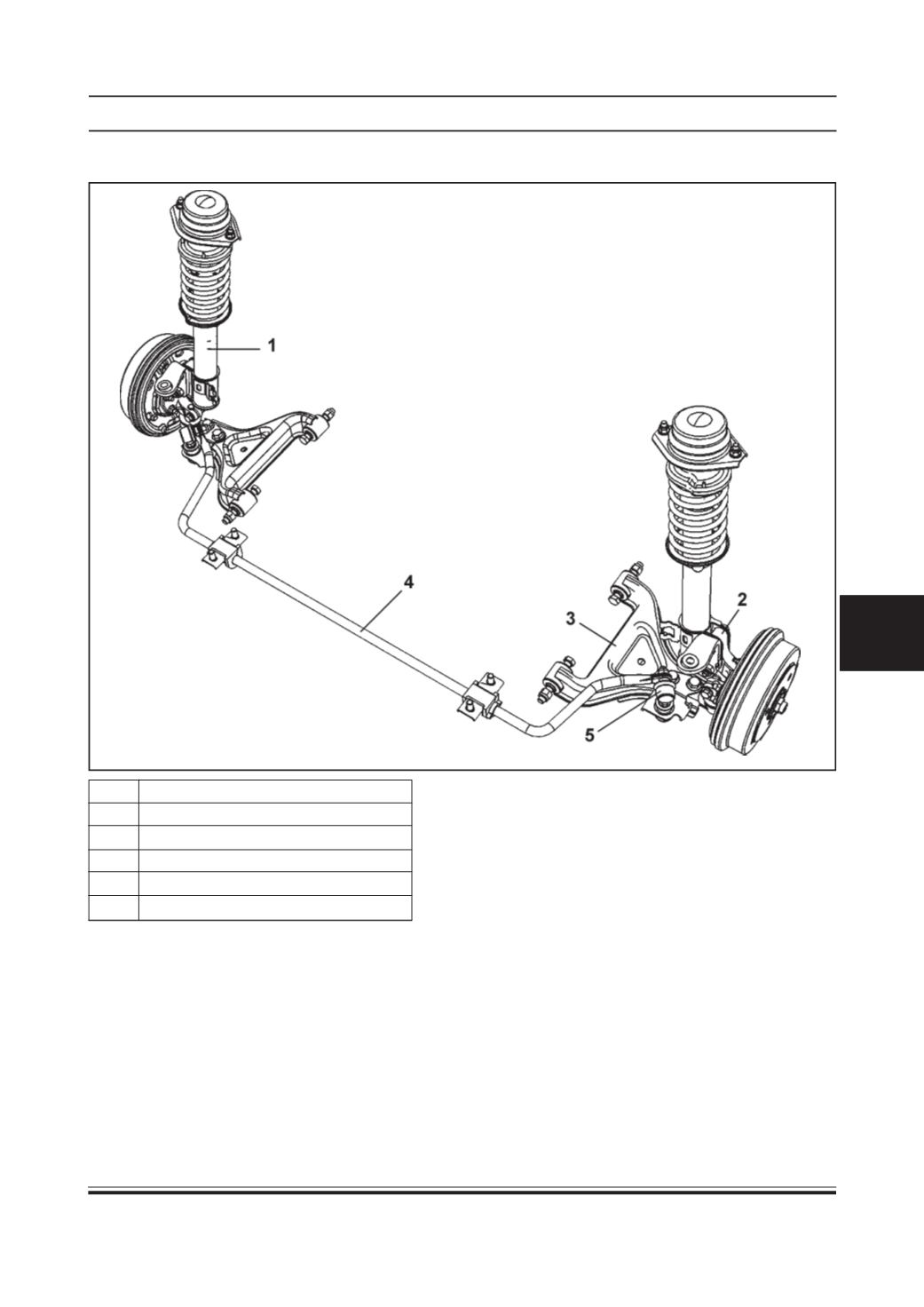

Sr. No. Description

1 Strut assembly

2 Steering knuckle

3 Lower arm

4 Anti roll bar

5 Ball joint

The construction of front suspension system is as given below:

Front suspension is independent, McPherson type with damper and spring assembly, together providing structural

support to the vehicle. It is also equipped with an anti-roll bar for better handling.

The upper end of a strut is anchored to a vehicle body. The strut and strut support at top end are isolated by a

rubber mount. A strut bearing (thrust bearing) is also installed below the rubber mount.

The lower end of a strut is connected to the upper end of a steering knuckle and lower end of steering knuckle is

attached to the stud of a ball joint which is incorporated in a unit with a suspension control arm (lower arm). The

tie rod ends are connected to the steering arm.

LAYOUT OF FRONT SUSPENSION SYSTEM
