ENGINE 273 MPFI

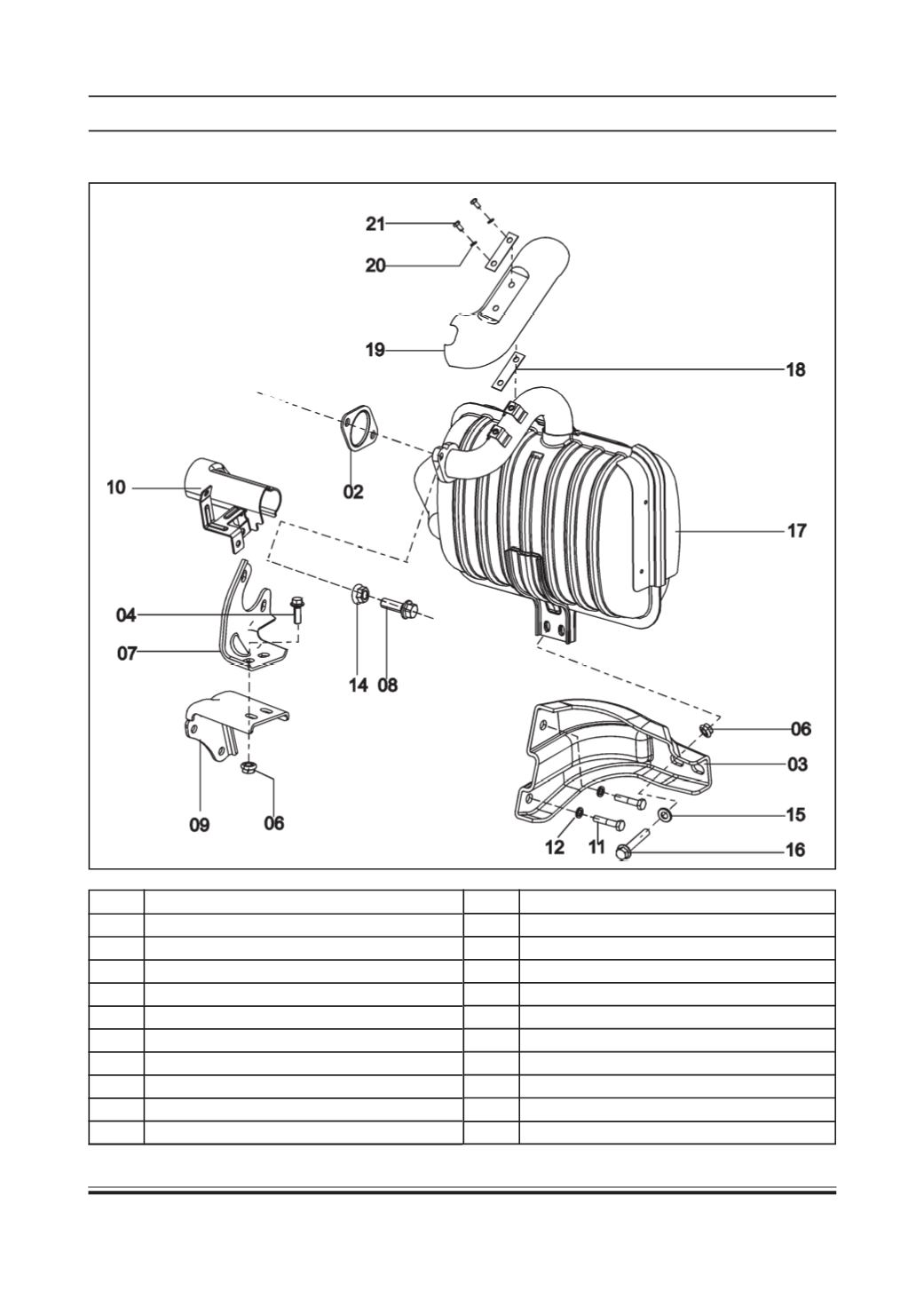

EXPLODED VIEW
SR NO. DESCRIPTION
02 GASKET
03 ASSY SILENCER MTG BKT ON GEAR BOX.
04 HEX FL SCREWM8X18
06 HEX FL NUTAM8
07 CATCON MTG BRACKET ON FLANGE
08 HEX FL SCRM8X35
09 BRACKET CATCON MTG. ON GEAR BOX
10 ASSY.HEATSHIELD FOR CLUTCH CABLE
11 HEXBOLTM8X40
12 SPRINGWASHER
SR NO. DESCRIPTION
13 HEX FL NUT BM8
14 HEX FL NUTAM8
15 BRIGHTWASHER
16 HEX FL SCRM8X50
17 ASSY SILENCER YSTEM
18 HEAT SHIELD PLATE
19 HEAT SHIELD CENTER PIPE
20 SPRINGWASHER B6
21 HEX SCREWM6X12
