NANO AMT

ENGINE 273 MPFI

179

ENGINE

GENERAL DESCRIPTION

The oil pump is s type and mounted on the crankshaft pulley side. Oil is drawn up through oil pump strainer and

passed through pump to oil filter.

The filtered oil flows through two paths and lubricates vital engine parts.

Oil reaches crankshaft journal bearings through one path, .

Oil from crankshaft journal bearings is supplied to connecting rod bearings by means of intersecting passages

drilled in crankshaft, and then injected from a small hole provided on big end of connecting rod to lubricate piston,

rings, and cylinder wall.

In another path, oil goes up to cylinder head and lubricates camshaft. Relieved oil drains back to oil pan.

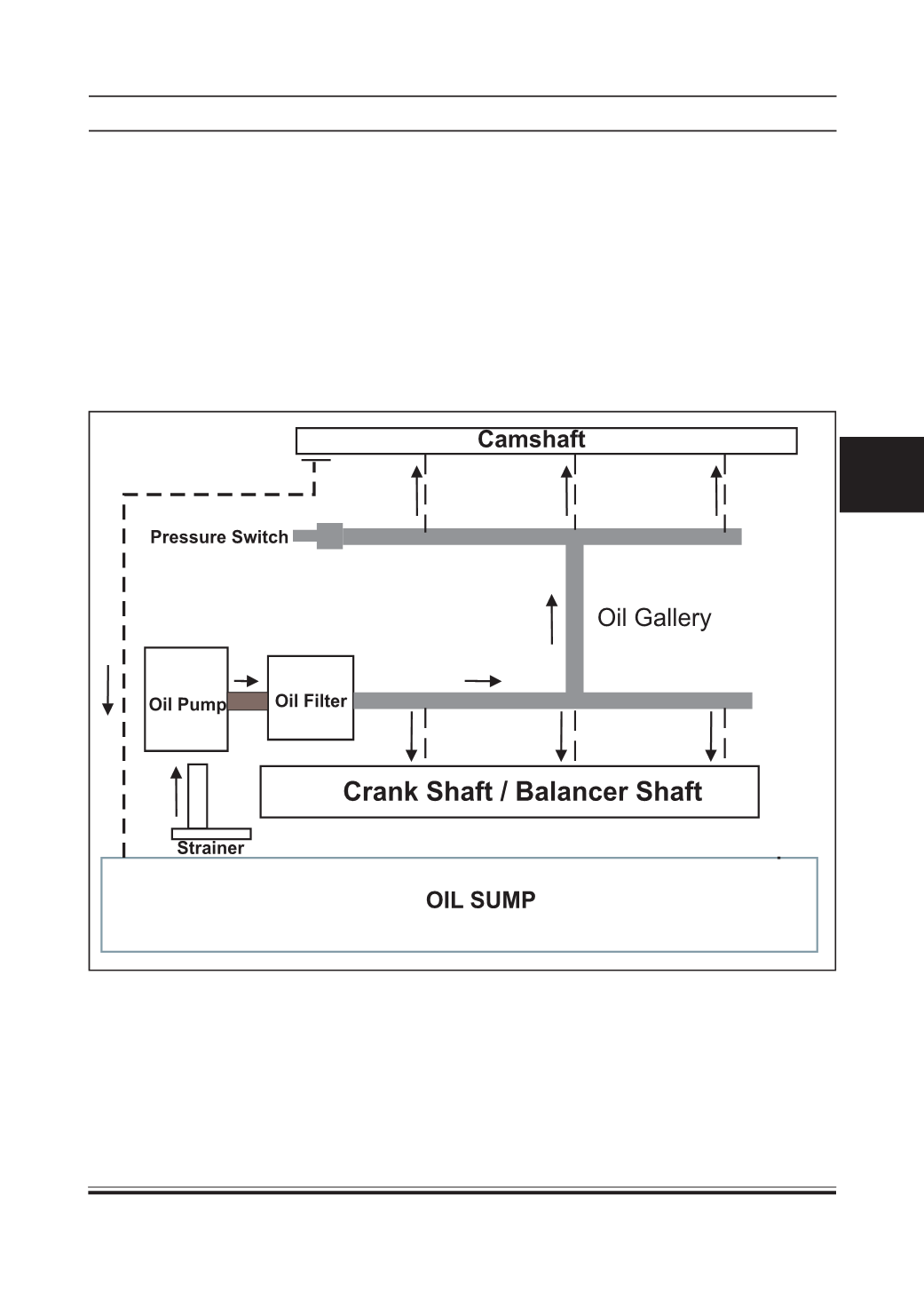

SYSTEM SCHEMATICS
