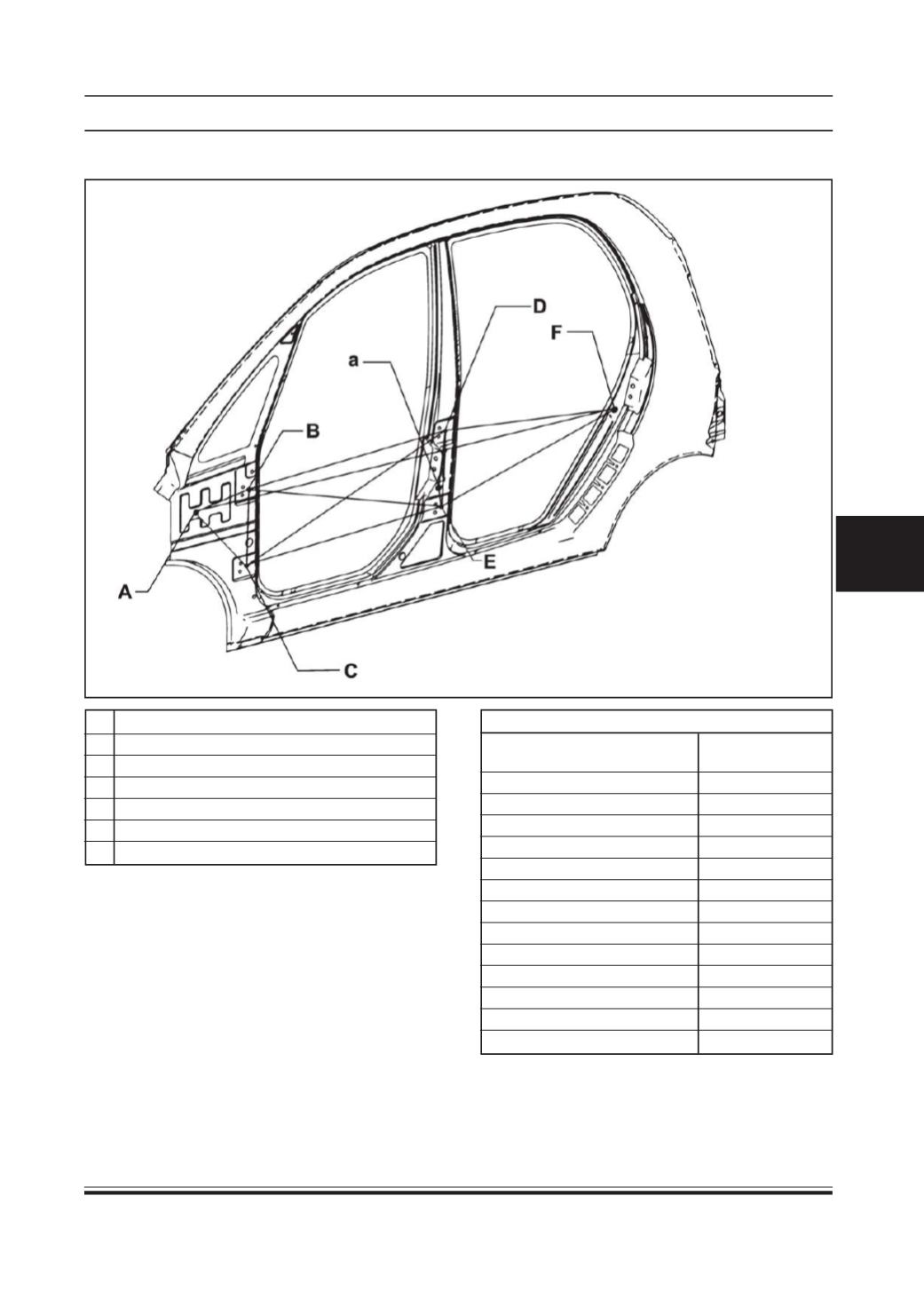

SIDE VIEW :
A Tooling hole (plp) centre
B Front door top hinge mtg. hole centre
C Front door bottom hinge mtg. hole centre
D Rear door top hinge mtg. hole centre
E Rear door bottom hinge mtg. hole centre
F Tooling slot (plp)
a Tooling hole (plp)
TABLE FOR SILE VIEW
MEASUREMENT
LENGTH
POSITION
(IN MM)
A - B
239
A - C
348
B - C
295
C - D
921
D - E
293
E - F
801
a - D
213
a - E
86
A - F
1850
B - D
851
D - F
771
B - E
874
C - E
846
