BODY

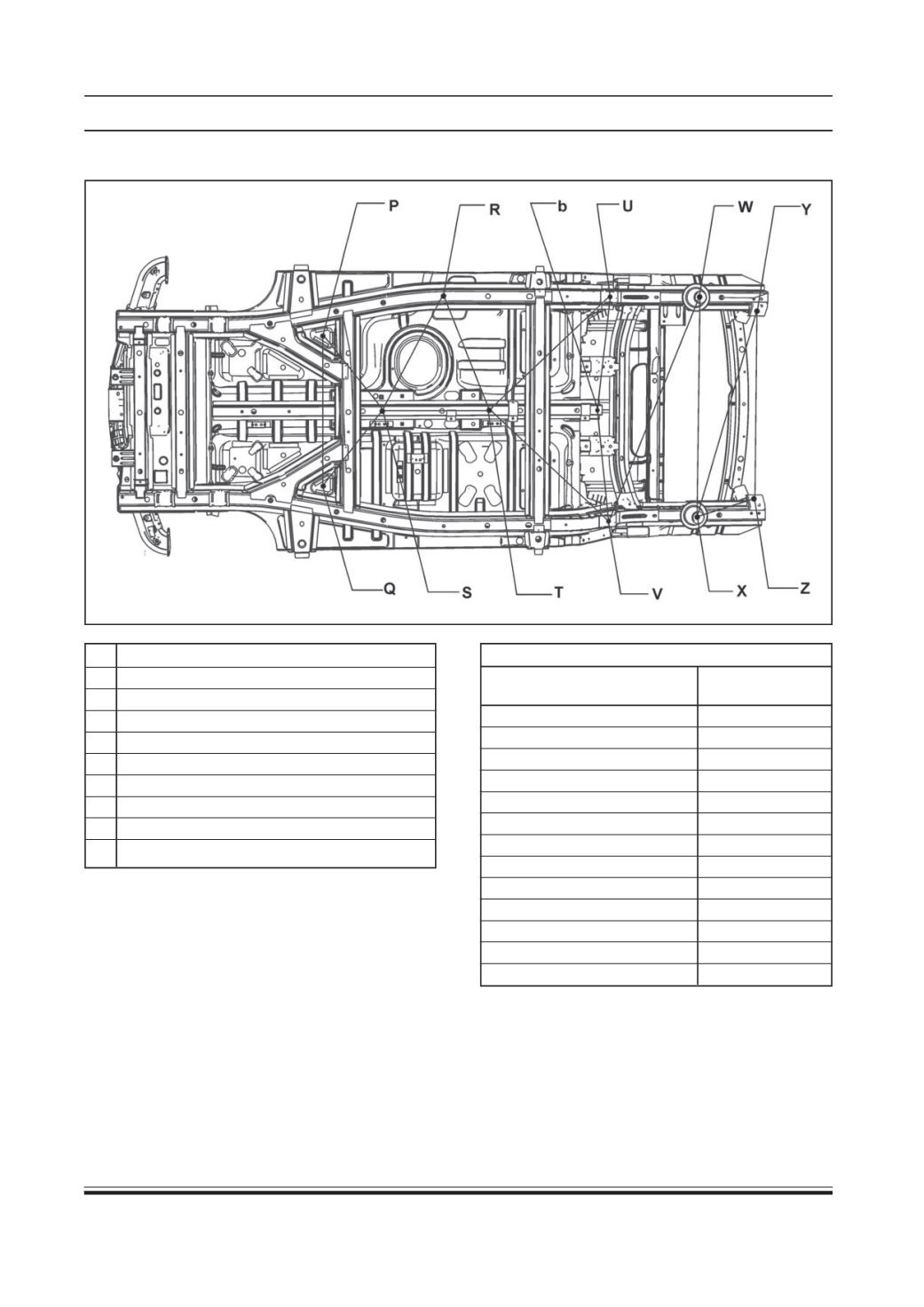

BOTTOM VIEW :
R Fuel tank LH mtg. hole centre
S Fuel tank centre mtg. front hole centre
T Fuel tank centre mtg. rear hole centre
b Engine cradle mtg. central hole centre point
U Engine cradle mtg. front LH hole centre point
V Engine cradle mtg. front RH hole centre point
W Rear suspension tower LH hole centre
X Rear suspension tower RH hole centre
Y Engine cradle mtg. rear LH hole centre point
Z Engine cradle mtg. rear RH hole centre point
TABLE FOR SILE VIEW
MEASUREMENT
LENGTH
POSITION
(IN MM)
P - S
412
Q - S
412
S - T
460
R - S
562
R - T
537
T - U
735
T - V
735
U - b
501
b - V
501
V - W
1084
W - X
989
X - Y
978
Y - Z
858
