ELECTRICAL
4
2.2.3. SPECIFICATION:
Nominal Voltage
13.5V DC
Operating Voltage
7V DC – 16V DC
Test Voltage
13.5V DC
Operating Current
< 1A
Operating Temp
- 40°C to +85°C

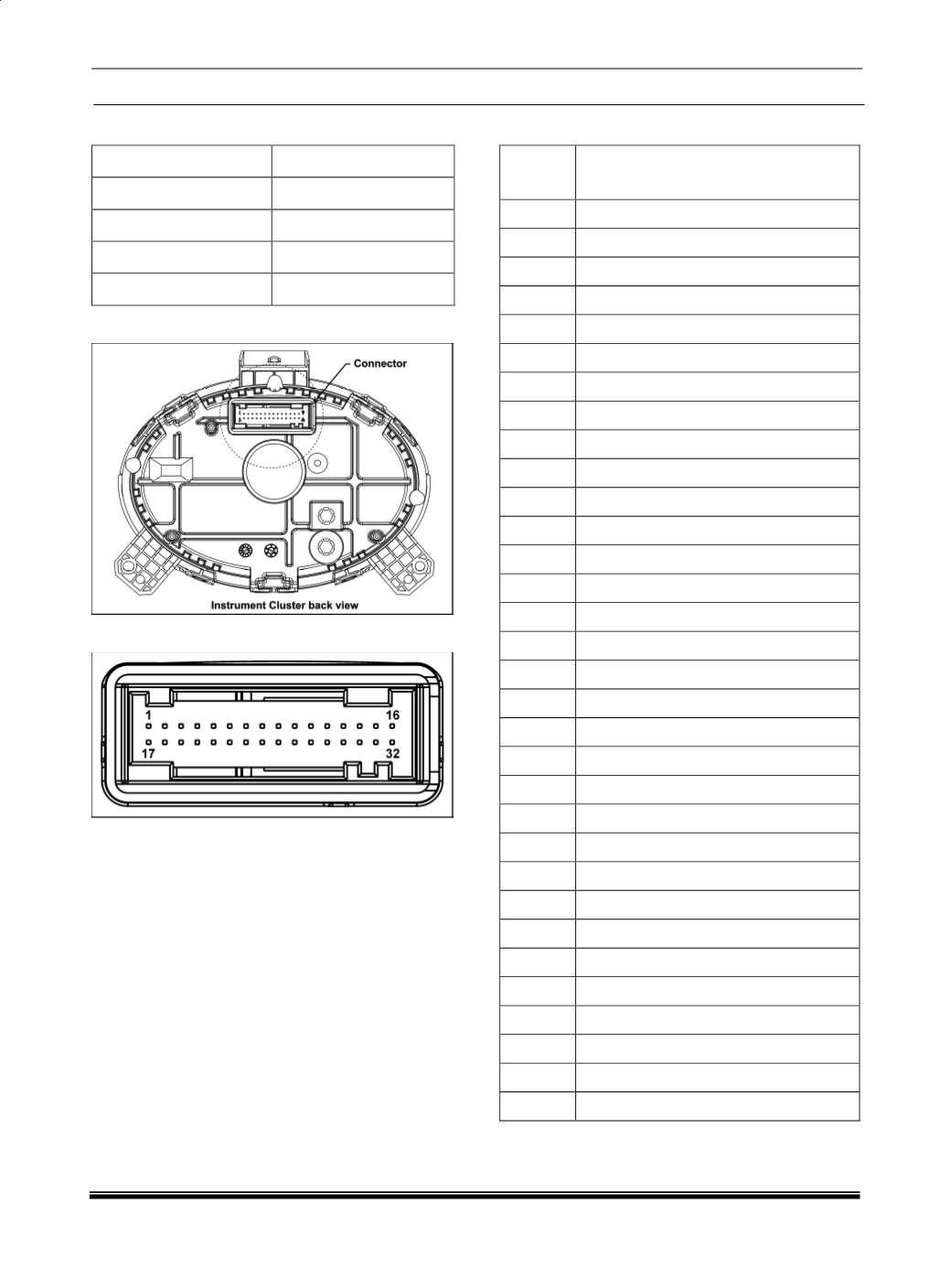

2.2.4. CONNECTION DETAILS:
2.2.5. CONNECTOR DETAILS:
2.2.6. PINOUT DETAILS
Pin
No.
Description.
1
Charge In
2
Spare In/Out
3
Speed Out Taxi
4
Speed Out EMS
5
Park Brake In
6
Brake Fluid In
7
Ign In
8
Rear Fog In
9
Front Fog In
10
Eng Oil Press In
11
Spare In OAT
12
Fuel Gnd
13
Fuel In
14
Signal Gnd
15
Speed In
16
Speed Sensor Supply
17
CAN H
18
CAN L
19
GND
20
Seat Belt In
21
Bonnet In
22
Door In
23
Park Lamp In
24
Key In
25
High Beam In
26
ESS In
27
Spare In HW TT
28
Turn Left In
29
Turn Right In
30
Spare Wake In
31
Immo TT In
32
B+
