DRIVETRAIN
399
DRIVETRAIN

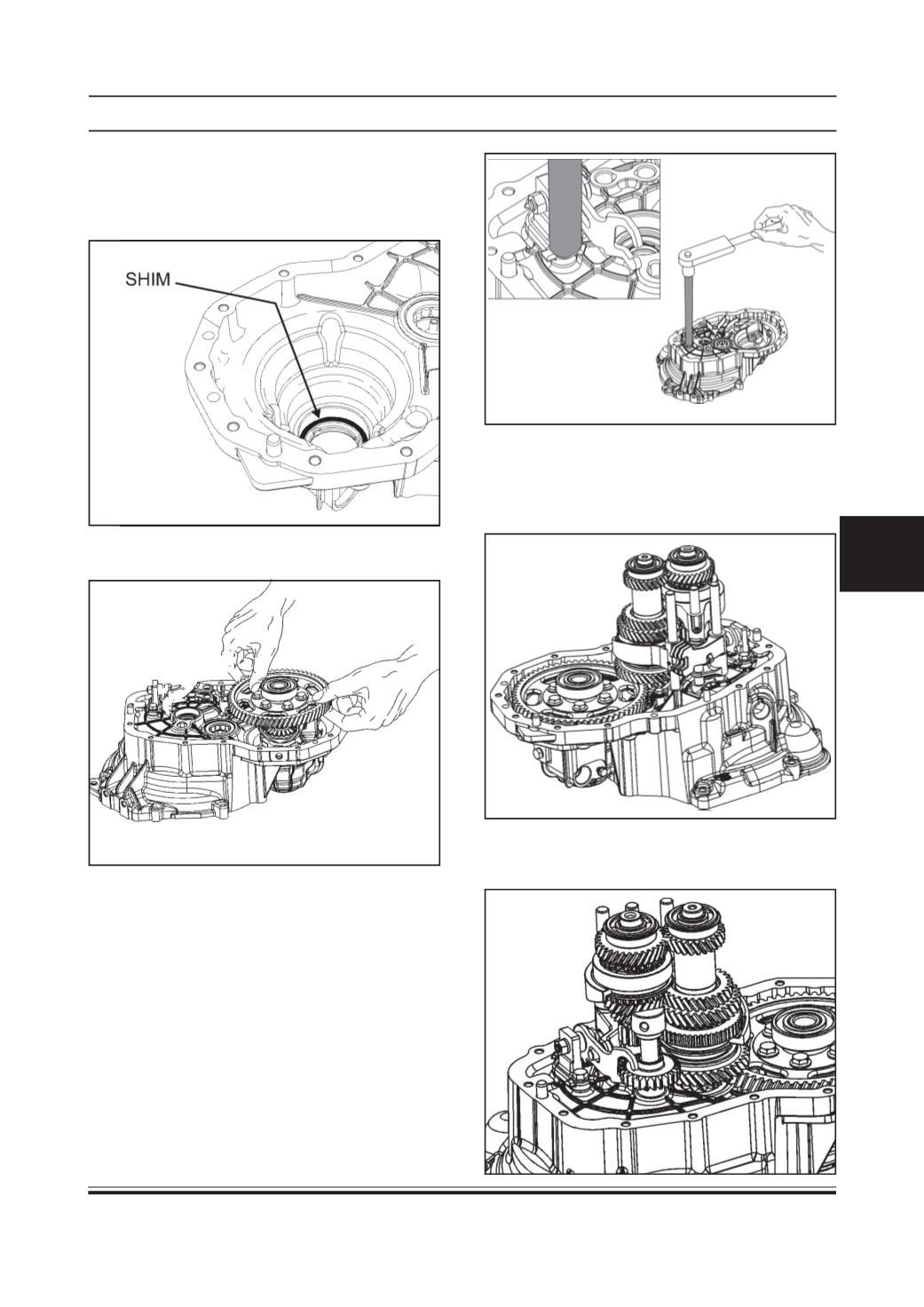

B. ASSEMBLING THE TRANSAXLE
1.
Place the differential shim selected (for shim
selection refer the Shim selection) in the differ-
ential housing in the front half housing.
2.
Place the differential assembly on the front half
housing.
4.
Place the layshaft and the input shaft alongwith
the shifter shaft (including reverse shifter shaft)
in their respective places. Ensure that the lay
shaft and input shaft gears are meshed. Ensure
the proper fitment meshing of the shifter sleeves.
3.
Place the reverse gear shifter bracket in its place
in the front housing and tighten its two M8 bolts
to a torque of 2.1 ~ 2.5 kgm.
5.
Place the spacer and idler gear assembly in its
place and mesh the reverse shifter dog to the
idler gear.
