DRIVETRAIN
379
DRIVETRAIN

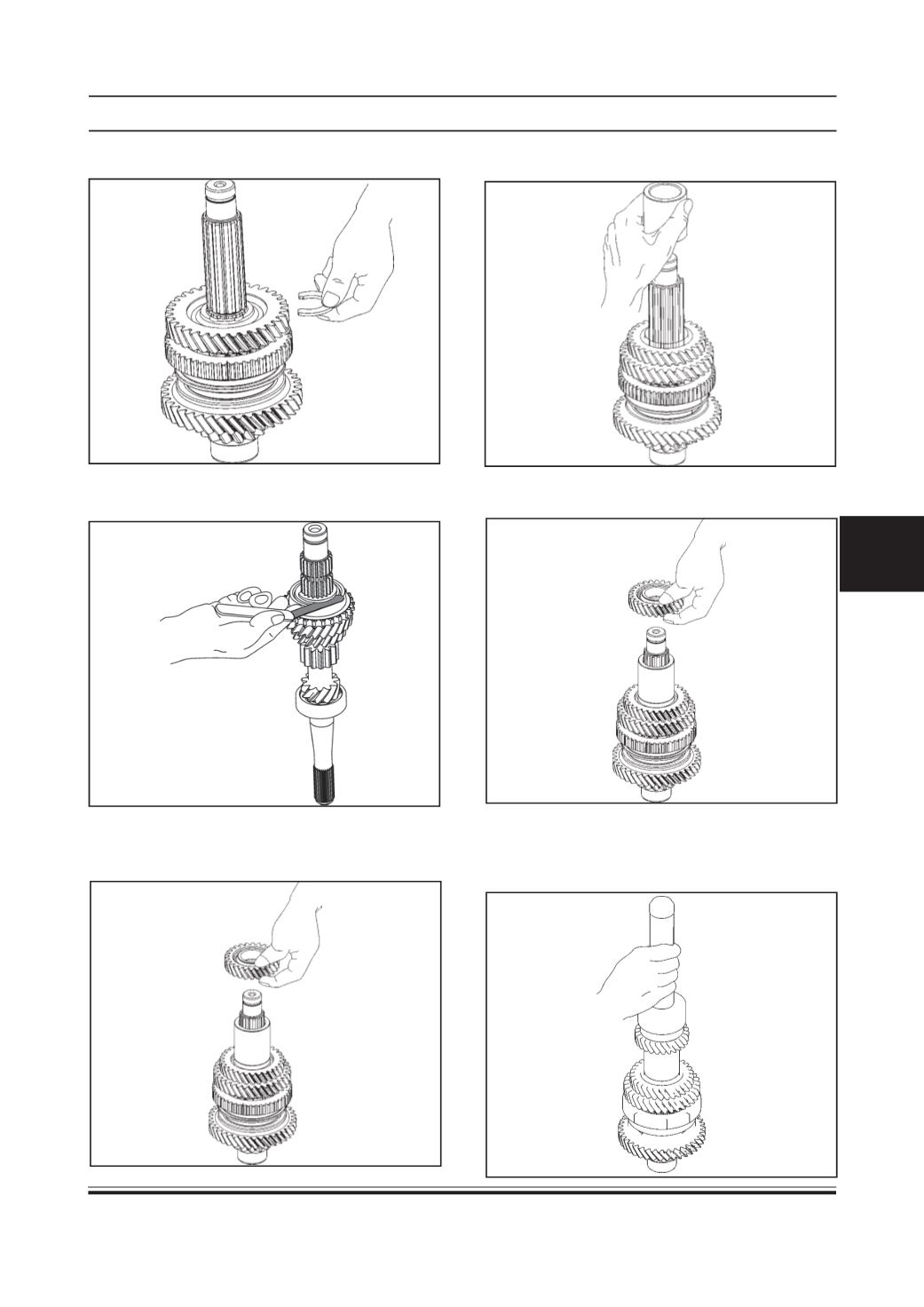

10. Fit the circlip in the slot.
11. Measure the gap between the second gear and
the circlip; it should be within 0.2 ~ 0.4mm.
12. Place the third gear on the circlip such that the
groove in its bottom (provided for circlip) rests on
the circlip.
13. Place the Spacer washer on the third gear.
14. Place the fourth gear on the spacer, with the flat
surface facing downwards.
15. Fit the rear half side ball bearing, using a suitable
2702 5890 35 04 (Drift for rear hub inner bearing
outer race), . Such that the groove on the shaft
can be seen.
