4.2.2 OVERHAUL

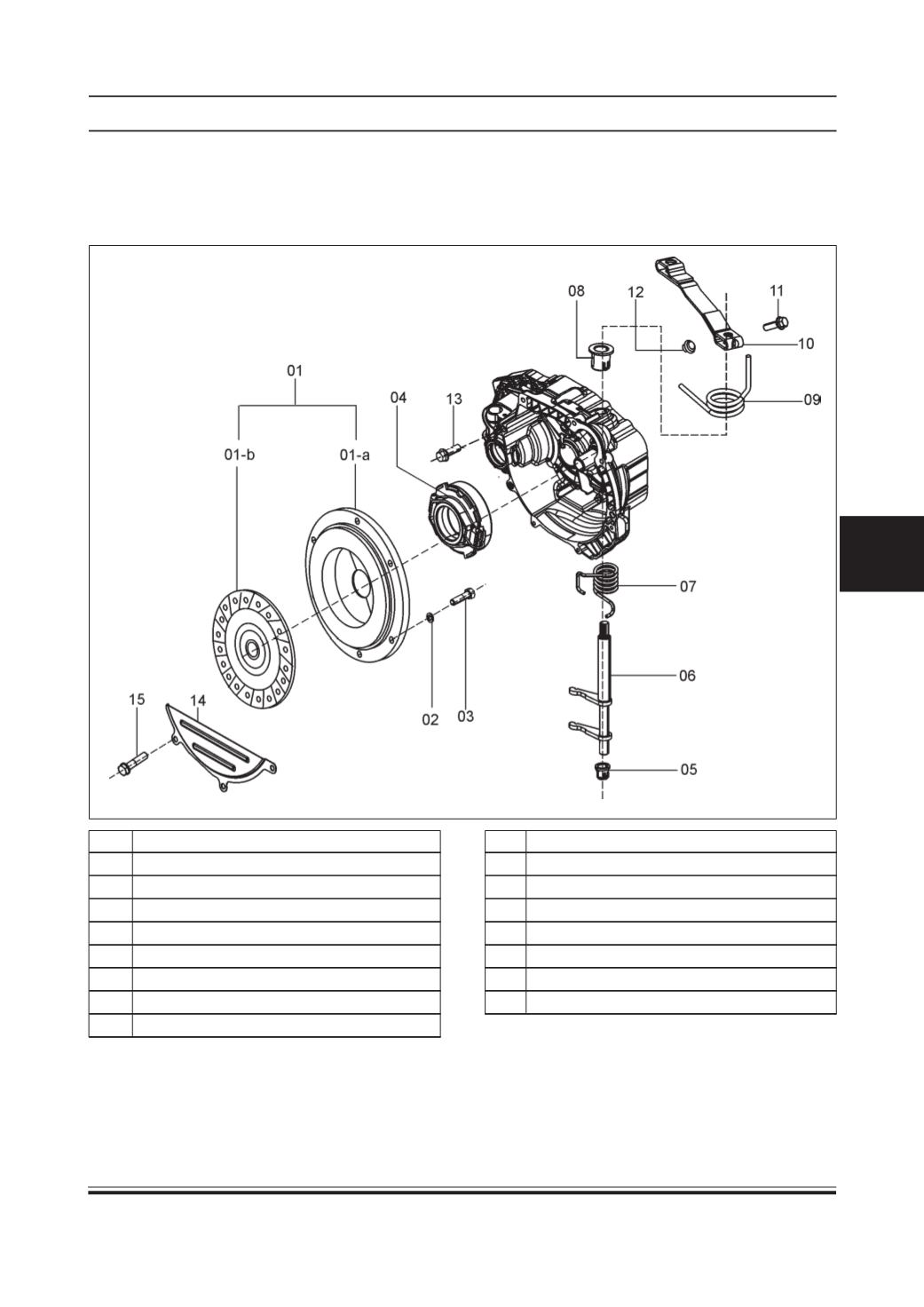

EXPLODED VIEWS
A. Clutch Assembly
01 Assy. 160 Dia. Clutch Disc & Pr.plate -
01(a) Assy.160 Dia.clutch Cover
01(b) Assy. 160 Dia. Clutch Disc
02 Spring Washer B8
03 Set Screw
04 Assy. Clutch Release Bearing
05 Bush Lower (On Housing)
06 Assy. Clutch Release Yoke
07 Return Spring (Internal)
08 Upper Bush (On Housing)
09 Return Spring (External)
10 Clutch Release Lever
11 Hex Fl Bolt M8x35
12 Hex Fl Nut Am8
13 Hex Fl Bolt M8x40
14 Assy. Back Cover
15 Hex Fl Bolt M6x30
