ENGINE 273 MPFI

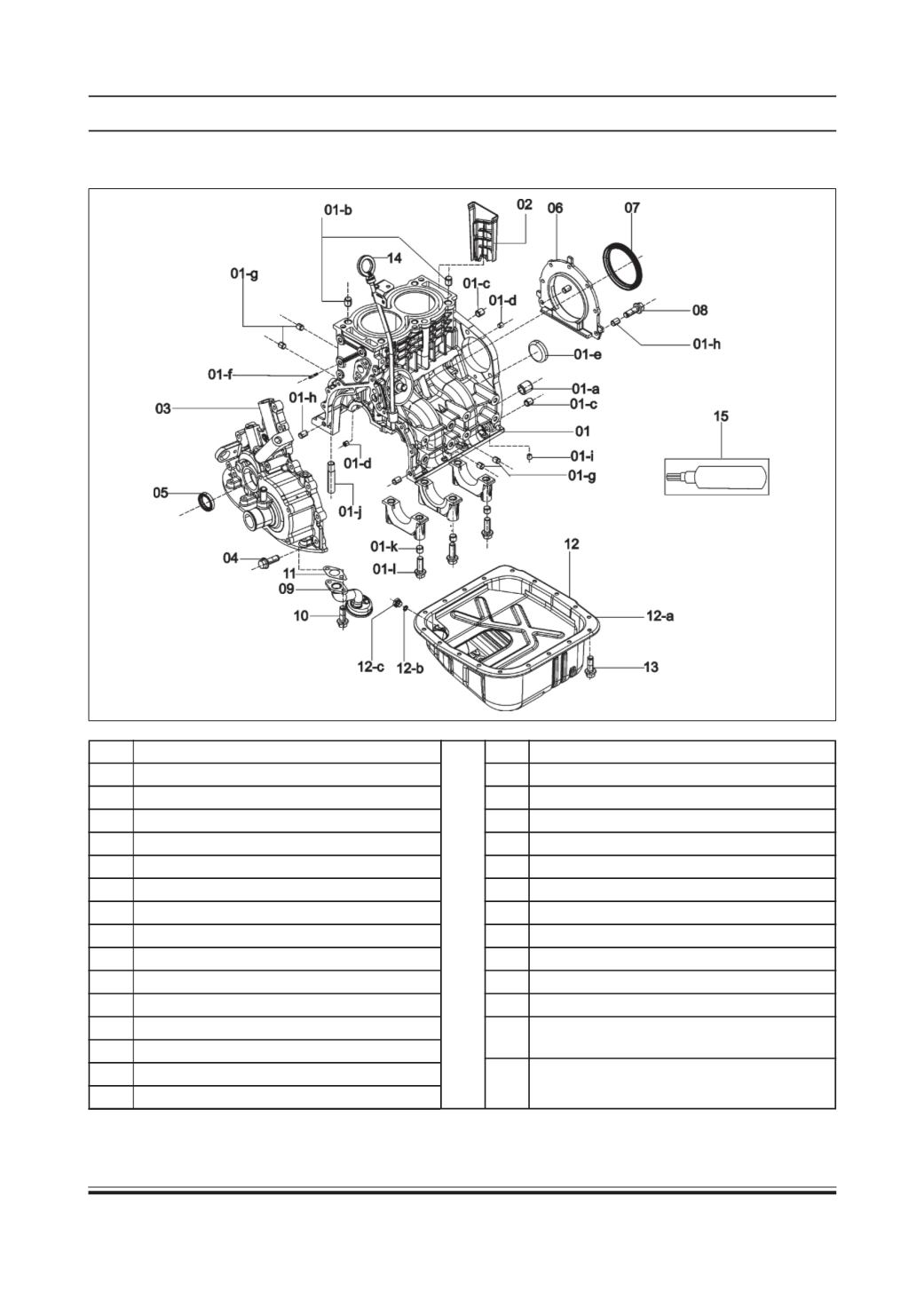

EXPLODED VIEW
01 Assembly Crankcase Complete
01-a Bush (Balancer Shaft)
01-b HollowDowel
01-c HollowDowel
01-d Plug
01-e Core Plug
01-f
Stud
01-g Hollow Dowel-Cyl. Head To Camshaft Cap
01-h HollowDowel
01-i
Plug
01-j
Oil Drain Tube
01-k Hollow Dowel (For Mb Cap Mtg.)
01-l
Hex Bolt
02 Baffle Plate (Cylinder Crankcase)
03 Integrated Oil And Water Pump
04 Hex Bolt
05 Oil Seal (Crankshaft Front)
06 Rear Cover Crankcase
07 Oil Seal (Crankshaft Rear)
08 Hex Fl Screw
09 Assy. Strainer (for Oil Pump)
10 Hex Fl Screw
11 Gasket (Strainer Oil Pump - High Flow)
12 Assy. Oil Sump Complete
12-b Sealing Washer
12-c Sealing Plug
13 Hex Fl Screw
14 Assy. Dipstick
15 Sealant Loctite 5182 (For Front Cover, Rear
Cover & Camshaft Bearing Cap No.1)
15 Sealant Loctite 5910 (For Oil Sump)
