107 / 1006
ENGINE 273 MPFI
101
ENGINE
•

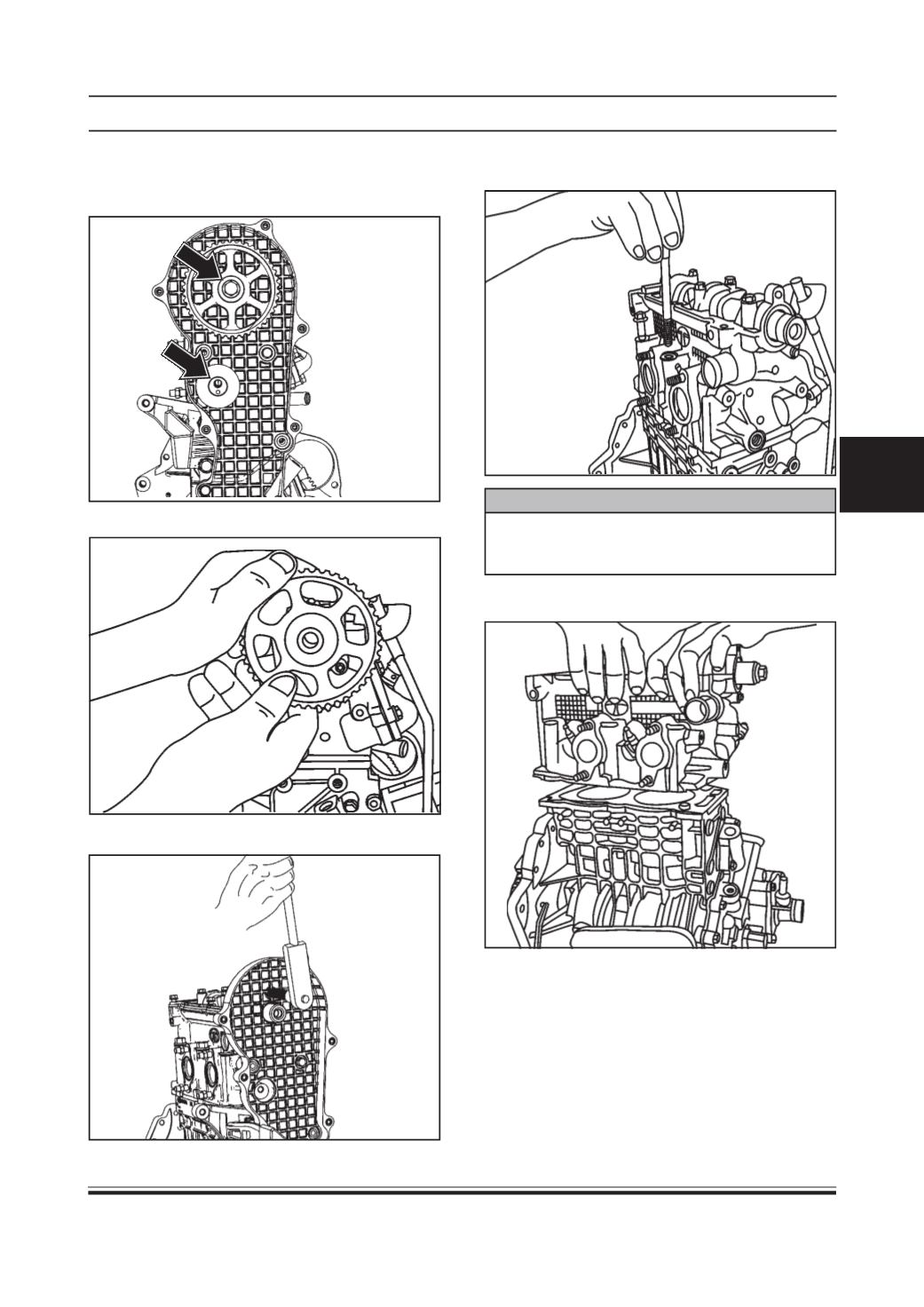

Remove themounting bolt of camshaft gear.
•
Removemountingbolt of tensioner roller and remove
it.
•
Remove Cam Shaft Gear and Pull out by hand.
•
Remove the rear timing Cover mounting bolts.
•
Remove the cylinder head mounting bolts to
separate the cylinder head cover fromengine block.
NOTE
Please ensure not to reuse cylinder head mounting
bolts once it is dismanteled. Use new cylinder head
bolts during assembly.
•
Take out the cylinder head from engine block.
•
Remove cylinder head gasket.
