ENGINE 273 MPFI
•

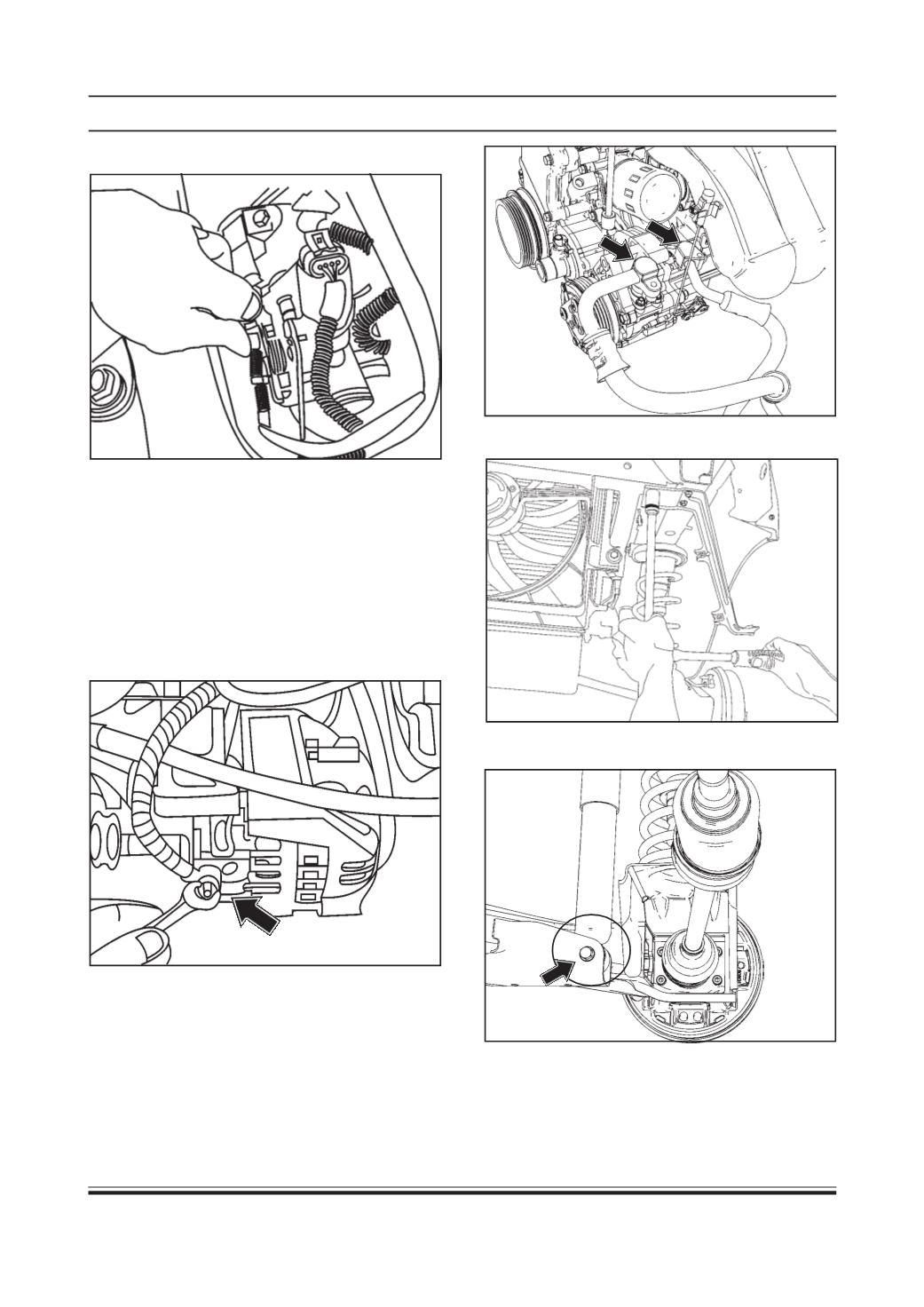

Disconnect accelerator cable at throttle body.
•
Disconnect clutch cable.(Refer Clutch Group)
•
Disconnect hand brake cable. (Refer BrakesGroup)
•
Disconnect brake hose clip mounted on
semitrailing arm.(Refer Suspension Group)
•
Remove the hose clamp securing heater line.
•
Disconnect charging alternator electrical
connections.
•
Disconnect the connectors from starter and
alternator.
•
Disconnect terminal from the starter motor.
•
Unscrew compressor elbow pipe & disconnect high
and low pressure pipe from compressor.
•
Remove rear bumper mounting bracket.
•
Remove damper. (Refer Suspension Group)
•
Position the engine support stand (2834 5890 24
01) just below the cradle in such a way that it holds
the cradle at its locating points when cradle
mounting bolts are removed.
