ELECTRICAL

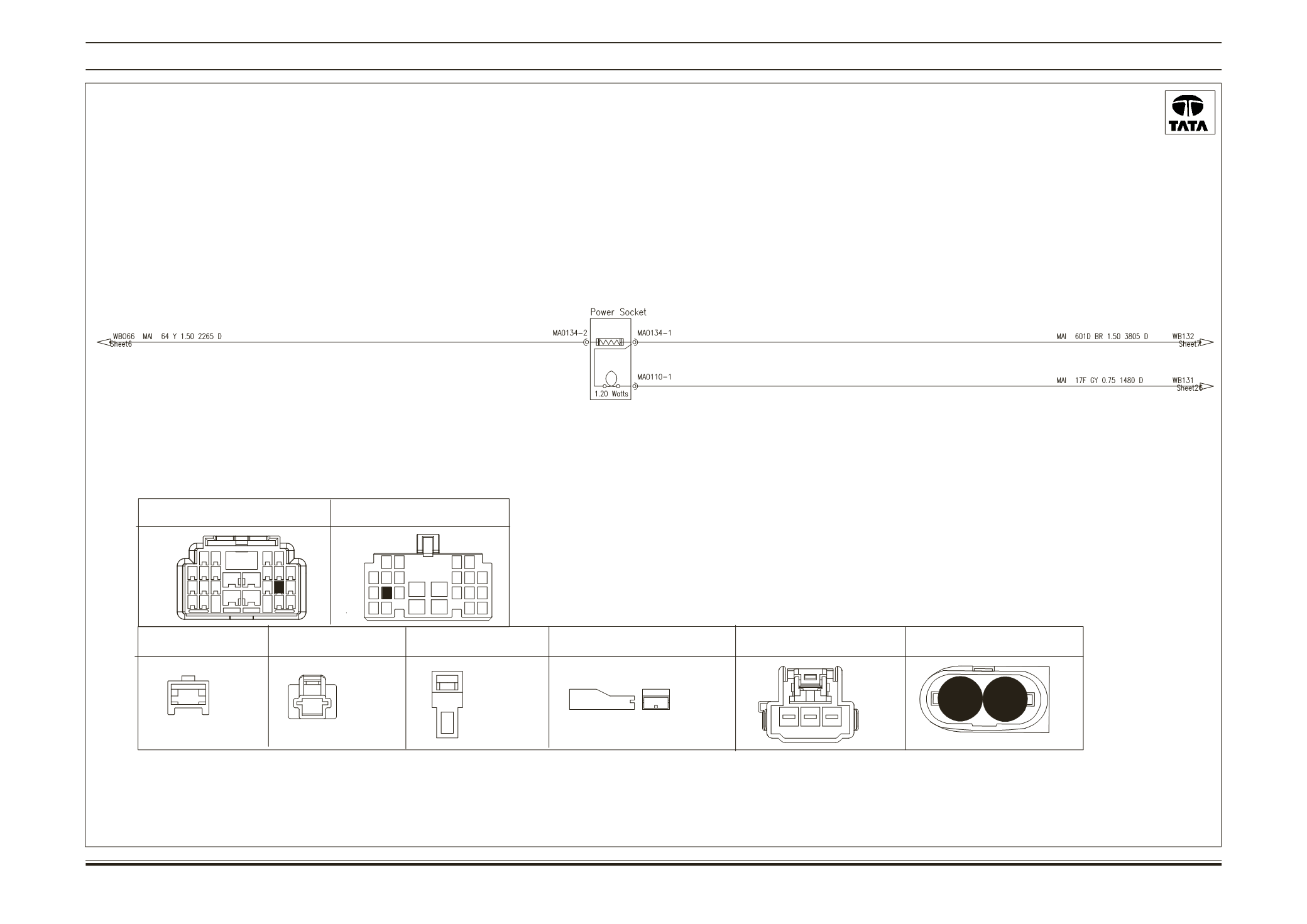

POWER SHOCKET AND CIGAR LIGHTER
FUSE LINK1
MAIN HARNESS-FL0001
FUSE LINK3
MAIN HARNESS-FL0003
POWER SOCKET
MAIN HARNESS-MA0134
POWER SOCKET ILLUMINATION
MAIN HARNESS-MA0110
COMBI SWITCH-INDICATORS
COCKPIT HARNESS-CP0144B
1
2
MAIN INTERFACE TO COCKPIT1
HARNESS-IN0004
4
10
18
24
1
5
11
19
COCKPIT INTERFACE TO MAIN
HARNESS -IN0003
4
10
18
24
1
5
11
19
17
17
1
3
BATTERYCHARGE INDICATORS
CONNECTOR (EM0112A)
1 2
NOTE : Battery charge indicators connector
1 pole for STD
2 pole for CX & LX version
