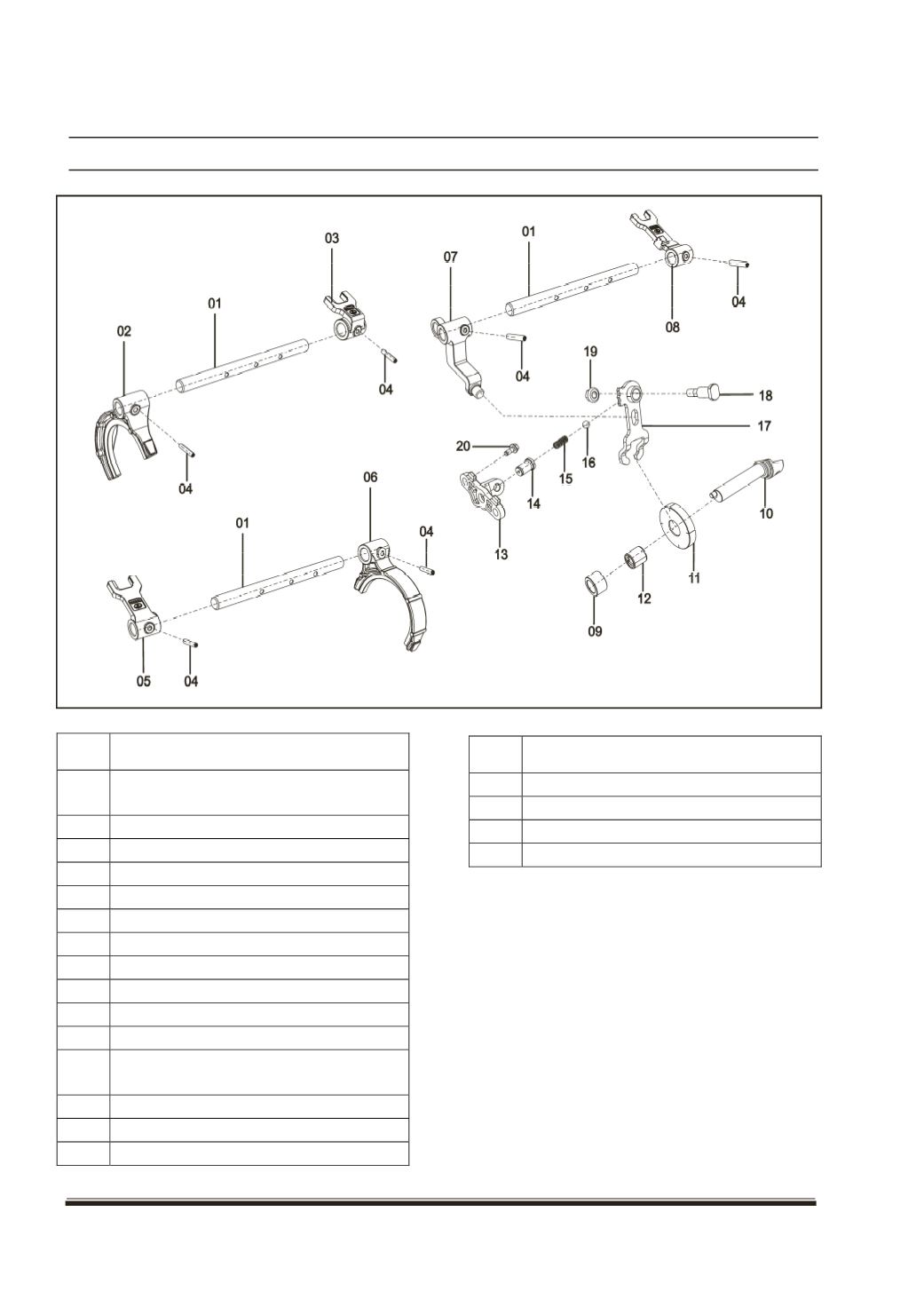

C. SHIFTER SHAFT AND SHIFTER SLEEVE
SR
NO.
DESCRIPTION
1
Shifter shaft 1st;2nd;3rd;4th and rev
speed gear
2
Fork (1st;2nd speed)
3
Shifter dog (1st/2nd gear)
4
Spiral pin
5
Shifter dog 3rd/4th speed gear
6
Shifter fork 3rd and 4th speed gear
7
Shifter finger (reverse idler gear)
8
Shifter dog (reverse gear)
9
Spacer (reverse idler gear shaft)
10
Reverse idler shaft
11
Reverse idler gear
12
Bimetallic bush (subassembly rev. Idler
gear with bime)
14
Barrel (reverse detent)
15
Spring (rev. Detent)
16
Ball 8 diameter
SR
NO.
DESCRIPTION
17
Assembly shift lever reverse idler gear
18
Pivot pin reverse idler lever
19
Hexagonal flange nut am8
20
Hexagonal flange screw M8X22
