ENGINE 1.3L QUADRAJET (90PS)
112

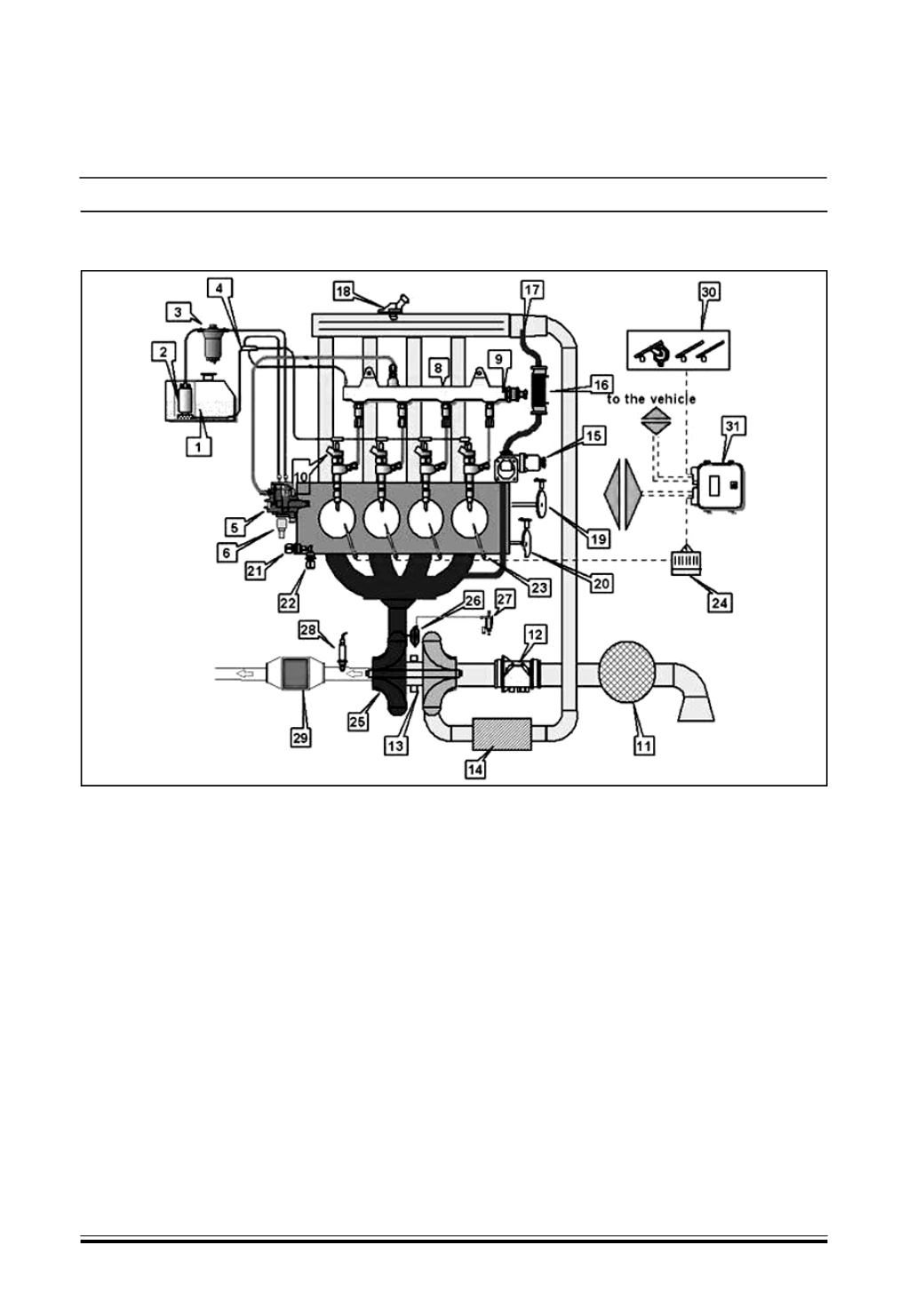

3A.1.8.4.2 SYSTEM LAYOUT
1.
Fuel tank
2.
Auxiliary fuel pump
3.
Fuel filter
4.
Fuel return manifold
5.
Pressure pump
6.
Pressure regulator on pump
8.
Rail
9.
Fuel pressure sensor on rail
10. Injectors
11. Air filter
12. Air flow meter
13. Compressor
14. Intercooler
15. E.G.R. solenoid valve
16. Water/exhaust gas heat exchanger for E.G.R.
system.
17. E.G.R. diffuser
18. Pressure relief and air temperature sensor
19. Rpm sensor
20. Timing sensor
21. Water temperature sensor
22. Minimum engine oil pressure switch
23. Heater plugs
24. Heater plugs control unit
25. Variable geometry turbocharger (VGT)
26. VGT actuator
27. VGT actuator solenoid valve
28. Lambda sensor (UEGO)
29. Catalytic converter
30. Pedal assembly
31. Injection control unit
