ENGINE 1.3 QUADRAJET (75PS)
97

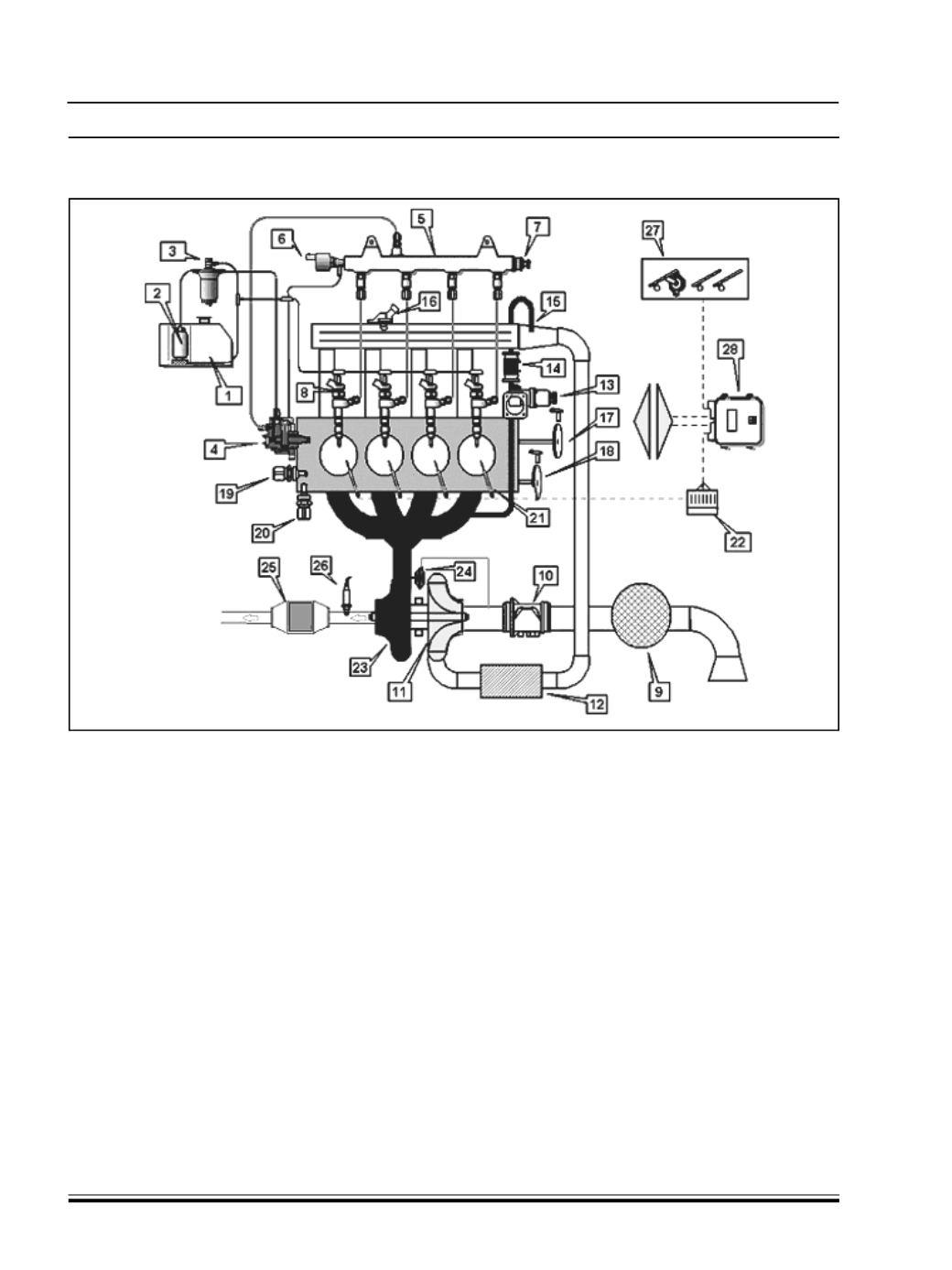

3A.1.8.4.2 SYSTEM LAYOUT
1.
Fuel tank
2.
Auxiliary fuel pump
3.
Fuel filter
4.
Pressure pump
5.
Rail
6.
Pressure regulator
7.
Fuel pressure sensor
8.
Injectors
9.
Air filter
10. Air flow meter
11. Compressor
12. Intercooler
13. E.G.R. solenoid valve
14. Water/exhaust gas heat exchanger for E.G.R.
system.
15. E.G.R. diffuser
16. Excess pressure sensor
17. Rpm sensor
18. Timing sensor
19. Water temperature sensor
20. Minimum engine oil pressure switch
21. Heater plugs
22. Heater plugs control unit
23. Turbocharger
24. Waste gate actuator
25. Catalytic converter
26. Lambda sensor (UEGO)
27. Pedal assembly
28. Injection control unit
