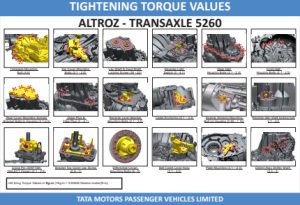

TIGHTENING TORQUE VALUES ALTROZ - TRANSAXLE 5260 TATA MOTORS PASSENGER VEHICLES LIMITED Transaxle Mounting Bolt (4.6) Top Cover Mounting Bolts (2.1 - 2.5) Lay Shaft & Input Shaft Locking Screw (18 - 22) Reverse Light Switch (3 - 4.1) Rear Half Housing Bolts (2.1 - 2.5) Rear Cover Mounting Screws Bracket Bolts to Housing (2.1-2.5) Drain Plug & Filler Plug (3 - 4.1) Reverse Lever Bracket Mounting Bolts (2.1 - 2.5) Cable Anchoring (2.1 – 2.5) Speedo Sensing Mounting Bolt on Housing (0.85 - 1.15) Reverse idler shaft locking bolt 2.1 - 2.5 Cross Pin (SHIFTER /SELECT Finger) (2.1 - 2.5) Bracket Top Cover cap Screw (0.9 - 1) Differential Crown Mounting Bolts (8 - 9) Bell Crank Lever Assy (2.1 - 2.5) Plate Mounting (2.1 – 2.5) Detent Assy Shifter Shaft (2.5 - 3) All Snug Torque Values in Kg-m (1Kg-m = 9.80665 Newton-meter(N-m) Front Half Housing Bolts (2.1 - 2.5) Ÿ
