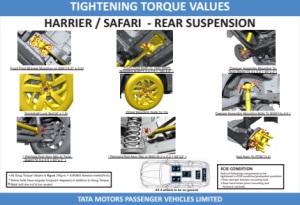

TIGHTENING TORQUE VALUES TATA MOTORS PASSENGER VEHICLES LIMITED 75 Kg 75 Kg 75 Kg 30 Kg Fuel 90% ECIE CONDITION Bolts of following components to be tightened in ECIE condition/preloaded condition • Rear damper bottom mounting bolt. • Rear twist beam pivot mounting and Panhard rod bolts All 4 wheels to be on ground HARRIER / SAFARI - REAR SUSPENSION Front Pivot Bracket Mounting on BIW(14.27 ± 0.4) *Front Pivot Bush To Twist Blade Mounting Bolt(11.2 ± 0.4 + 120˚± 6° ) *Damper Assembly Mounting To Twist Blade(15.3 ± 0.5 + 60°± 3°) Driveshaft Lock Nut(30 ± 1.5) Wheel Mounting Nuts(12-15) Damper Assembly Mounting Bolts To BIW(11± 0.4 ) * Panhard Rod Assy Mtg.to Twist Beam(16.3 ± 0.5 + 60°± 3° ) * Panhard Rod Assy Mtg.to BIW(16.3 ± 0.5 + 60°±3° ) Hub Assy To RTB(13.2) All Snug Torque Values in Kg-m (1Kg-m = 9.80665 Newton-meter(N-m) Some bolts have angular torque(in degrees) in addition to Snug Torque Mark bolt are not to be reused * Ÿ Ÿ
