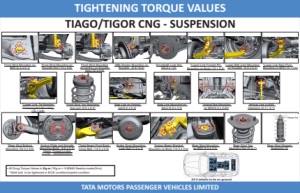

TIGHTENING TORQUE VALUES TIAGO/TIGOR CNG - SUSPENSION TATA MOTORS PASSENGER VEHICLES LIMITED 30 Kg Fuel 90% 75 Kg 75 Kg 75 Kg Front Strut Mounting on BIW (2.3 ± 0.1) Front Strut Mounting on Knuckle Arm (12 ± 0.6) Front Strut Mounting (eccentric) on Knuckle Arm (12 ± 0.6) ABS Sensor Mounting on Knuckle (0.8 +0.2) Driveshaft Lock Nut (24.5 ± 1.5) *Lower Link Forged Pin Mounting on Body (10 + 0.5) Lower Ball Joint Mounting on Knuckle (5.5 ± 0.3) *Lower Link Tie Member Clamping Nut Mounting (12 + 0.6) *Lower Link Rear Pivot Mounting on BIW (10 + 0.5) Front Strut Top Mounting (top nut) (6.9 ± 0.3) Stab Link on Antiroll bar(5.5 ± 0.3) Stab Link Mounting on Strut (5.5 ± 0.3) *Antiroll Bar Mounting on BIW(4.5 ± 0.25) Vertical Link to BIW Clamping (2.3 + 0.1) *Rear Strut Bottom Mounting (16.3 ± 0.5) Anchor Plate and Spindle Mounting Bolts (5.6 ± 0.3) {Apply Thread Locker Loctite - 56506002562} *Twist Beam Pivot Bush Cross Bolt (14.3 ± 0.5) Brake Drum Mounting Lock Nut(17.5 ± 2) Torsion Beam Bracket Mounting on Body (14.3 ± 0.5) Rear Strut Mounting on BIW (4.5 ± 0.3) Rear Strut Top Mounting Nut (6 to 7) Rear Strut Stopper Assembly (2) All 4 wheels to be on ground All Snug Torque Values in Kg-m (1Kg-m = 9.80665 Newton-meter(N-m) * Mark bolt to be tightened in ECIE condition/loaded condition Ÿ
